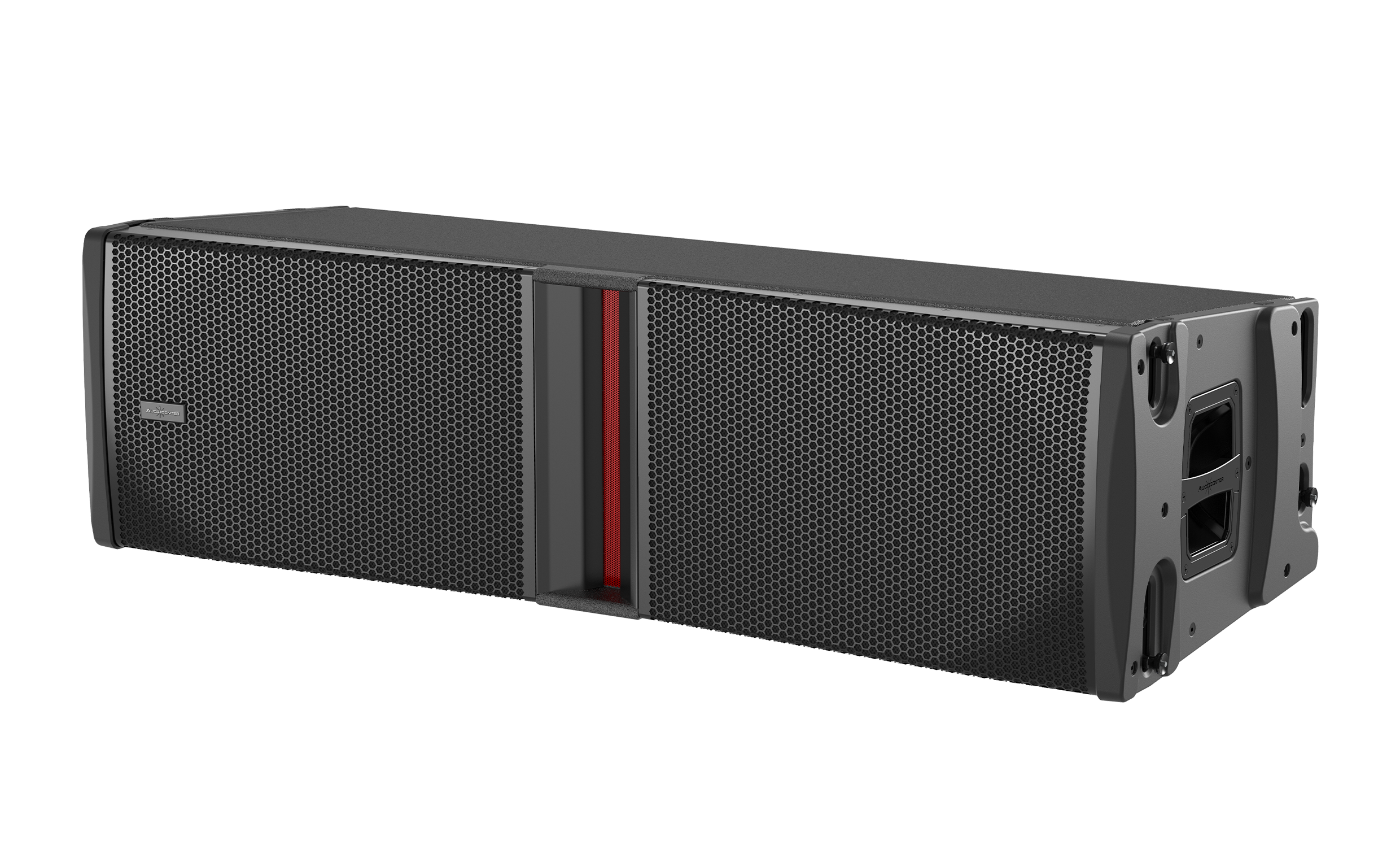

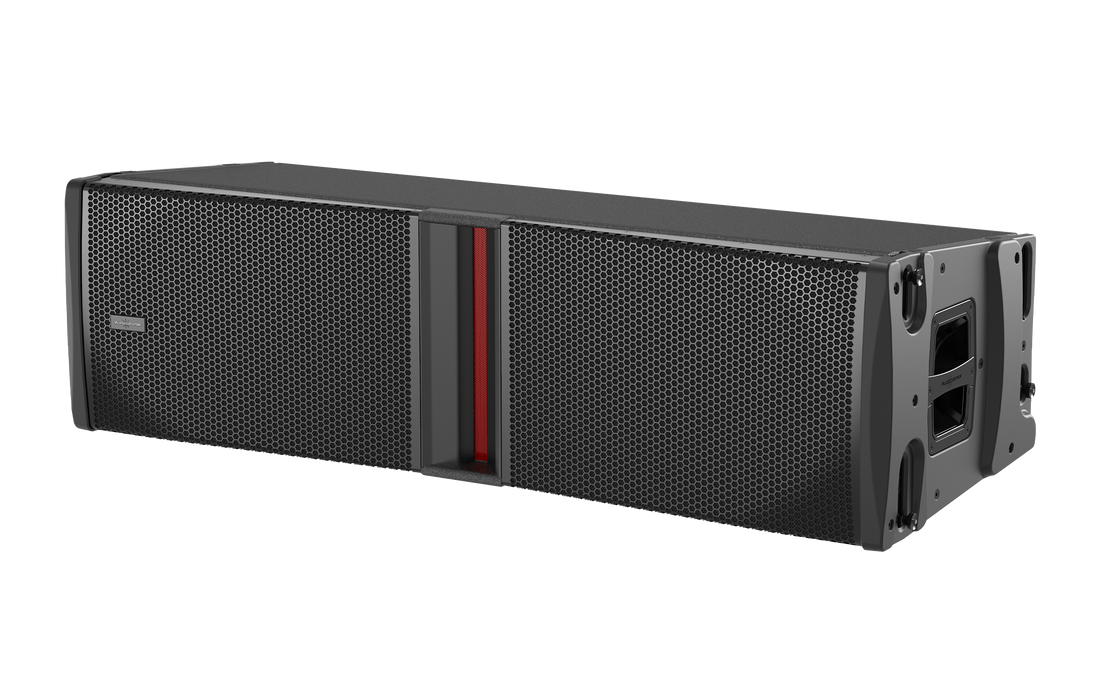

Audio Center AVANDA 212A Active Line Array Speaker

The Audio Center AVANDA 212A is a powerful dual 12-inch active line array speaker designed for concerts, churches, touring systems, auditoriums, and large-scale professional sound reinforcement. With high-output Class D amplification, FIR DSP processing, and advanced waveguide technology, it delivers powerful, clear, and controlled sound for demanding live applications.

Key Features

• Dual 12" two-way active line array design
• Built-in DSP with FIR filtering
• 96kHz high-resolution signal processing
• BrainCore™ system integration
• ARROWHEAD™ waveguide technology
• 1600W RMS Class D amplifier
• 3200W peak power
• 90° horizontal coverage
• 3 factory DSP presets (4 Units / 8 Units / 12 Units)
• Touring-grade birch plywood cabinet
• Waterproof polyurea coating
• Adjustable array angles from 0°–10°

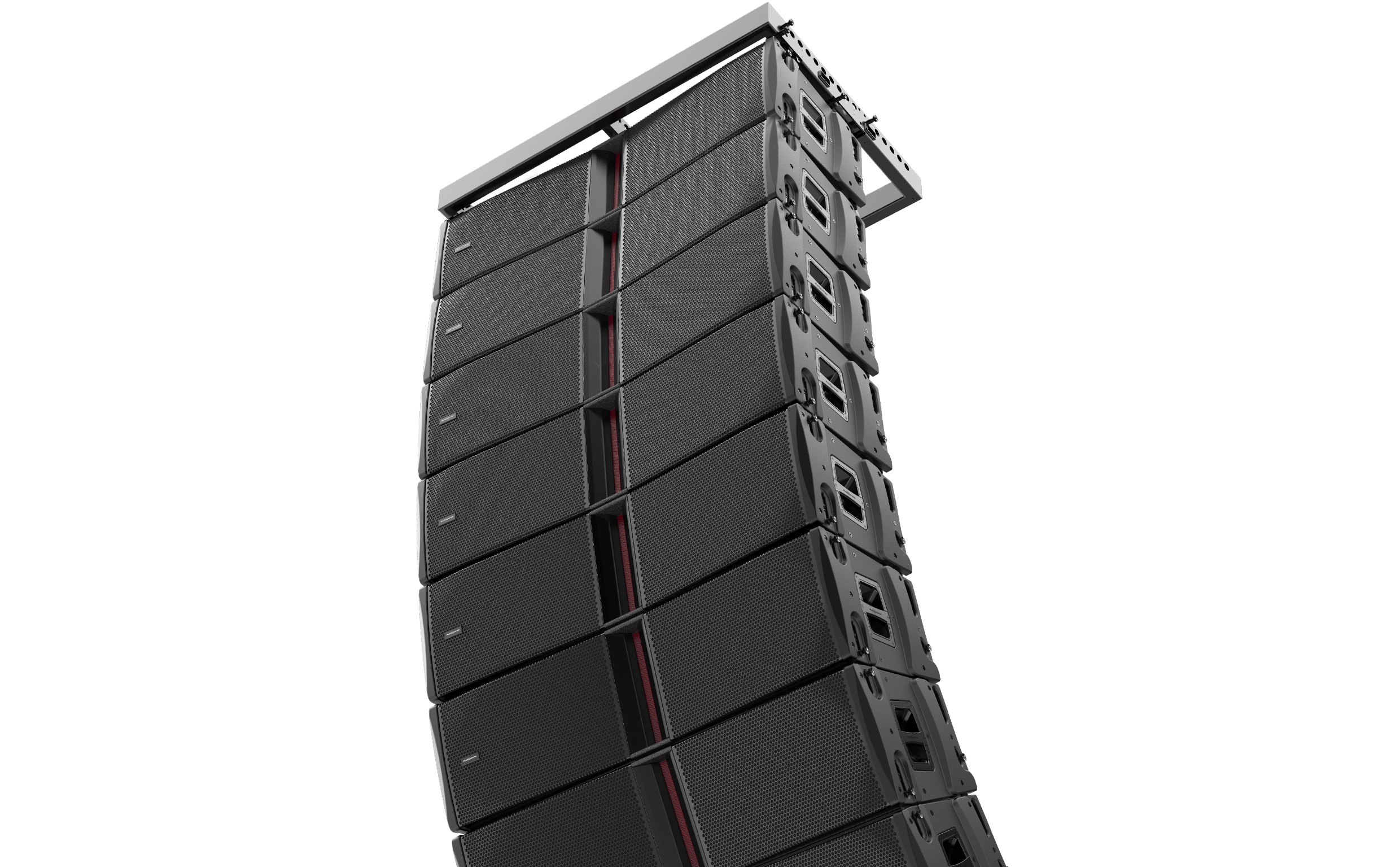

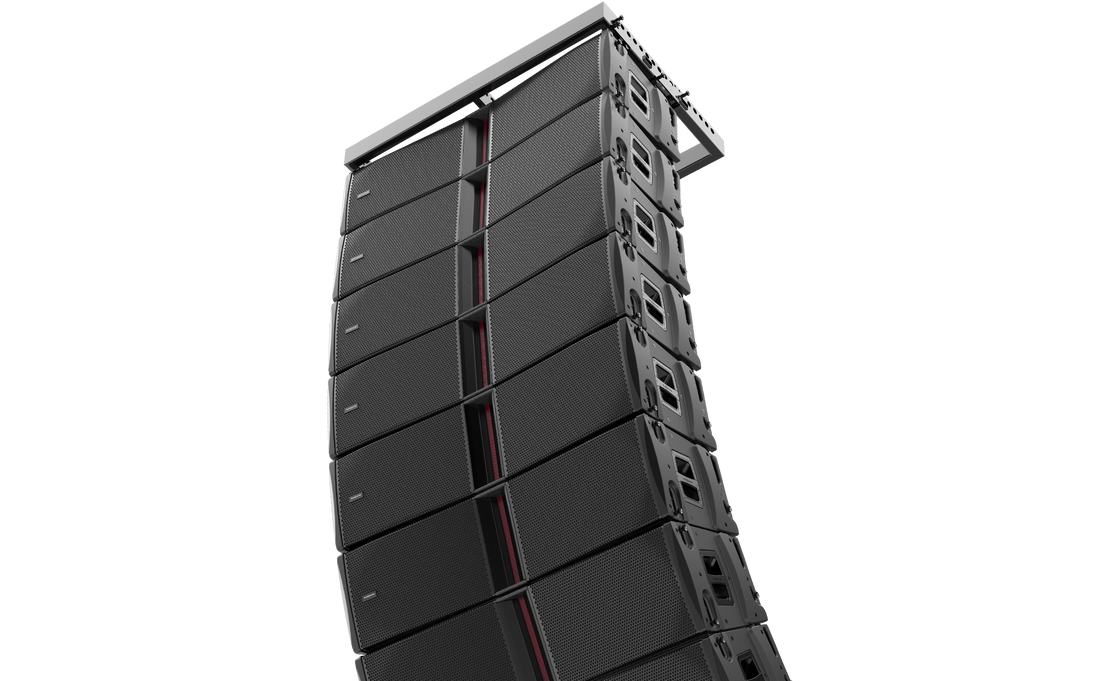

• Designed for flying or ground stacking
• Automatic sleep mode after no signal input

Specifications

• Type: Active DSP-controlled line array loudspeaker

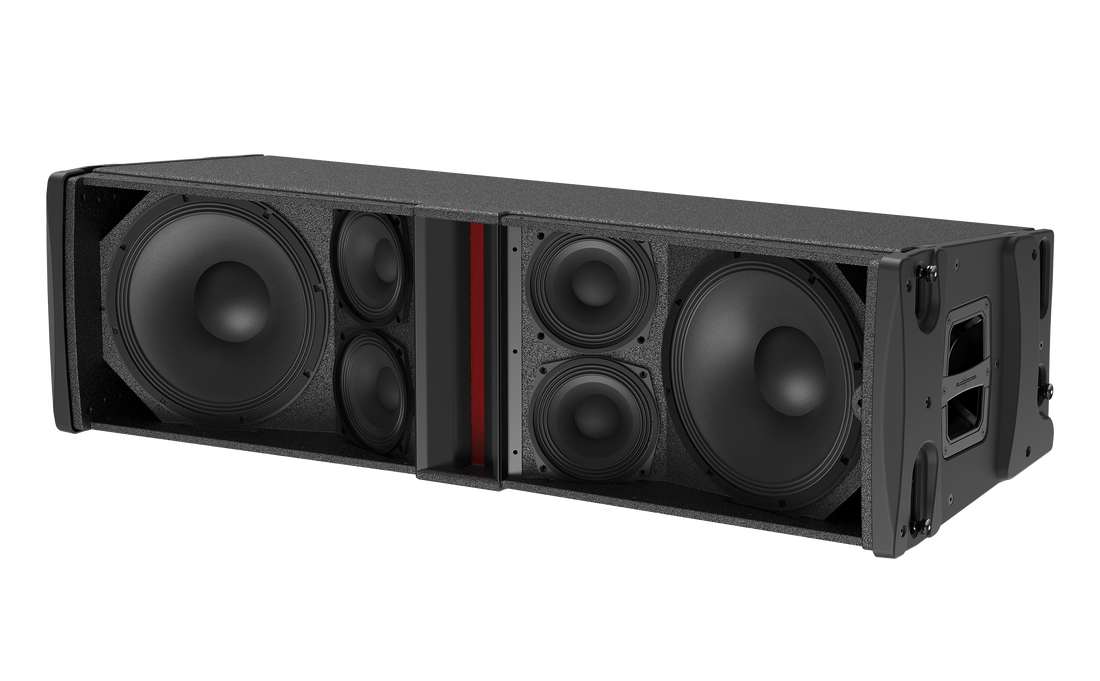

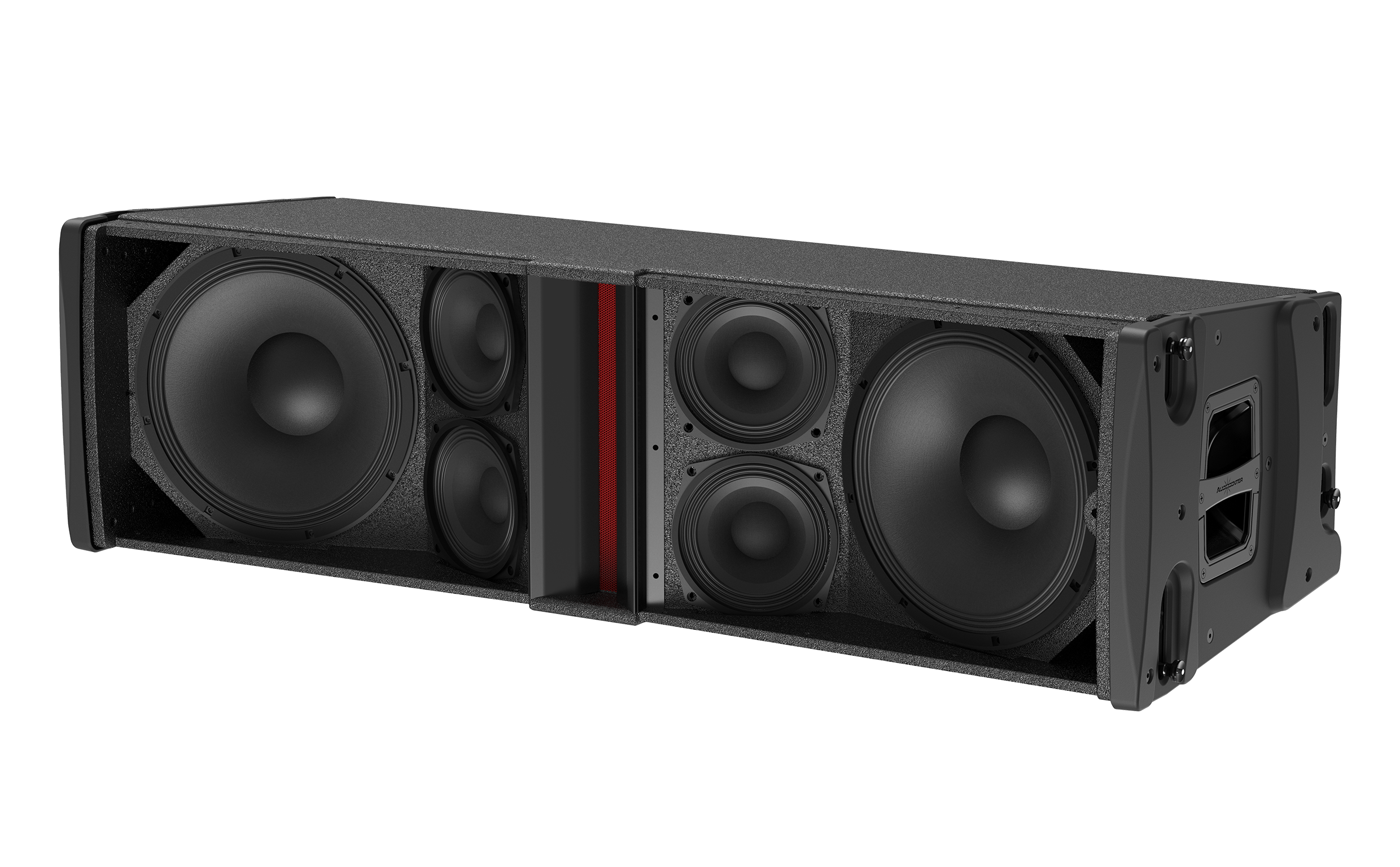

• Drivers:
  • 2 × 12" LF drivers
  • Neodymium HF driver with 2 × 3" voice coils
• Frequency Response: 60Hz–20kHz
• Coverage: 90° horizontal
• Maximum SPL: 134dB continuous / 140dB peak
• Amplifier: Class D
• Power:
  • 1600W RMS
  • 3200W Peak
• DSP:
  • 96kHz processing
  • FIR filtering
  • 3 presets

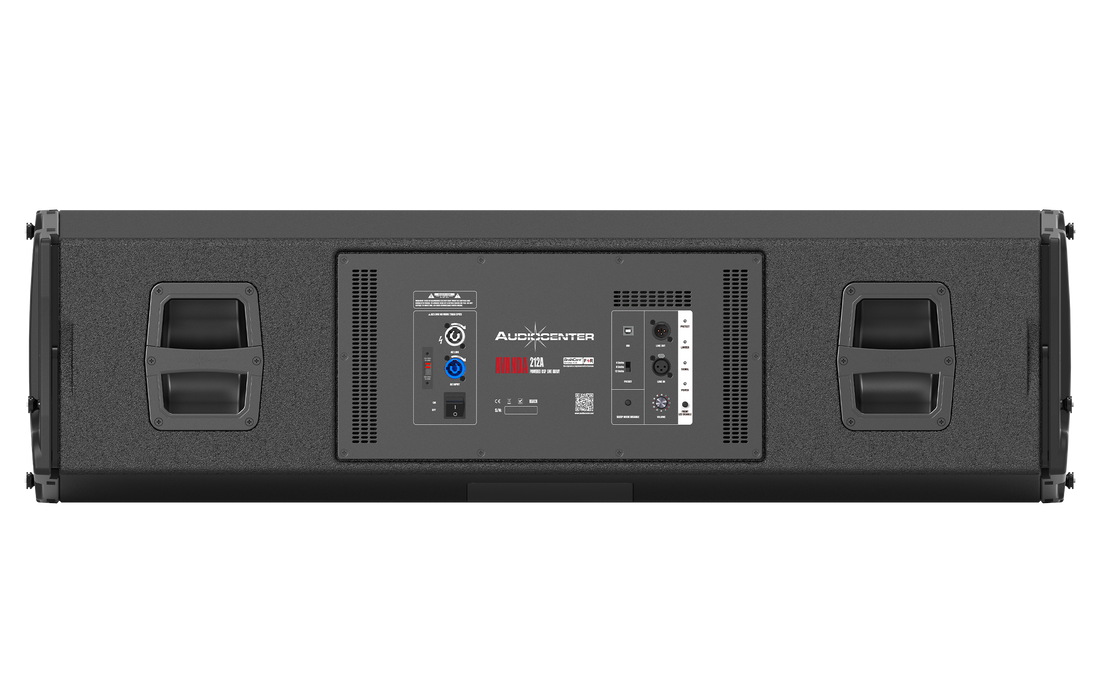

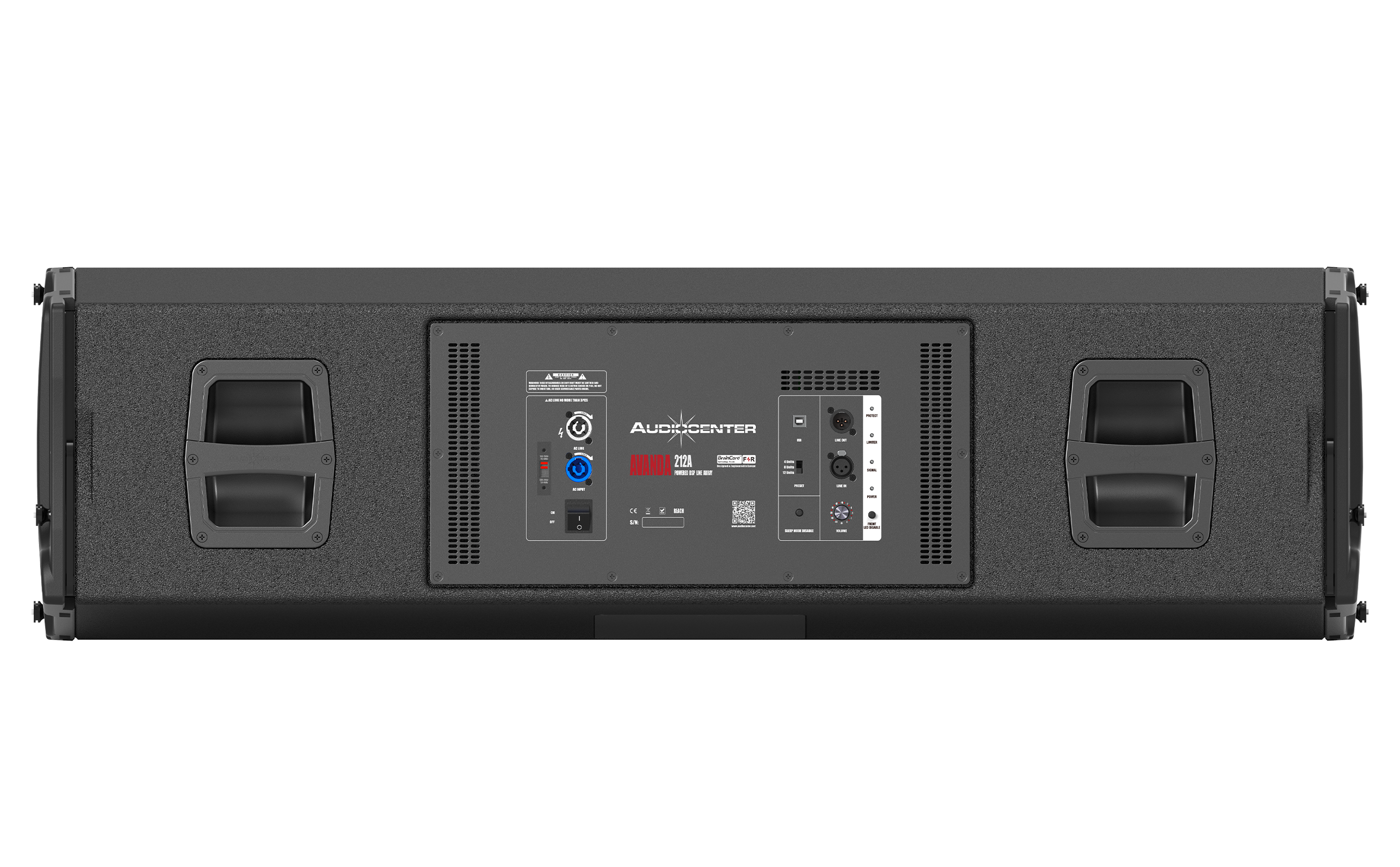

• Connectivity:
  • Female XLR input
  • Male XLR output
  • Power connector input/output
• Protection:
  • Overheat protection
  • Short-circuit protection
  • Over/under voltage protection
  • Soft-start protection

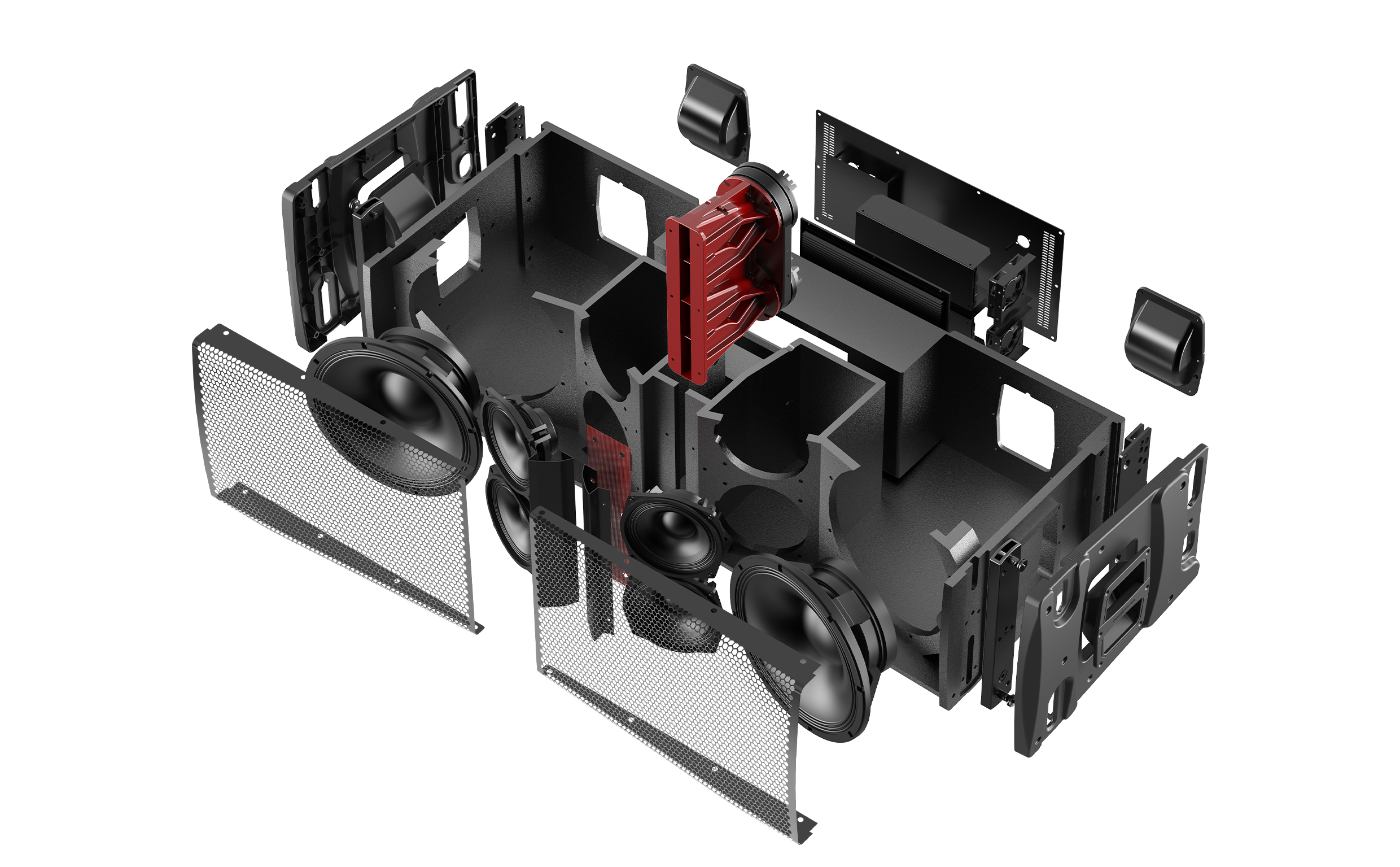

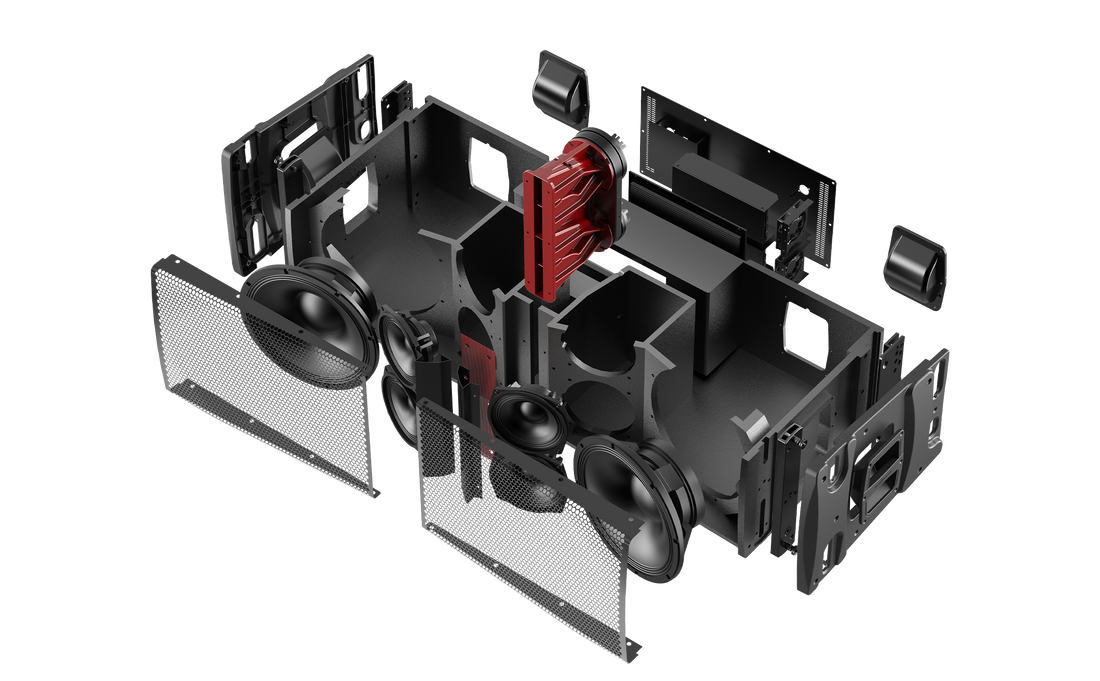

• Cabinet: CNC birch plywood with polyurea coating
• Angle Adjustment: 0°, 1°, 2°, 4°, 6°, 8°, 10°
• Dimensions: 1038 × 367 × 491 mm
• Weight: 52 kg

 It’s Best For

• Large churches and worship halls
• Concert and touring systems
• Outdoor festivals and events
• Auditoriums and fixed installations
• Professional live sound reinforcement
