Behringer WING RACK – 48-Channel Rack-Mount Digital Mixing Console (4U)

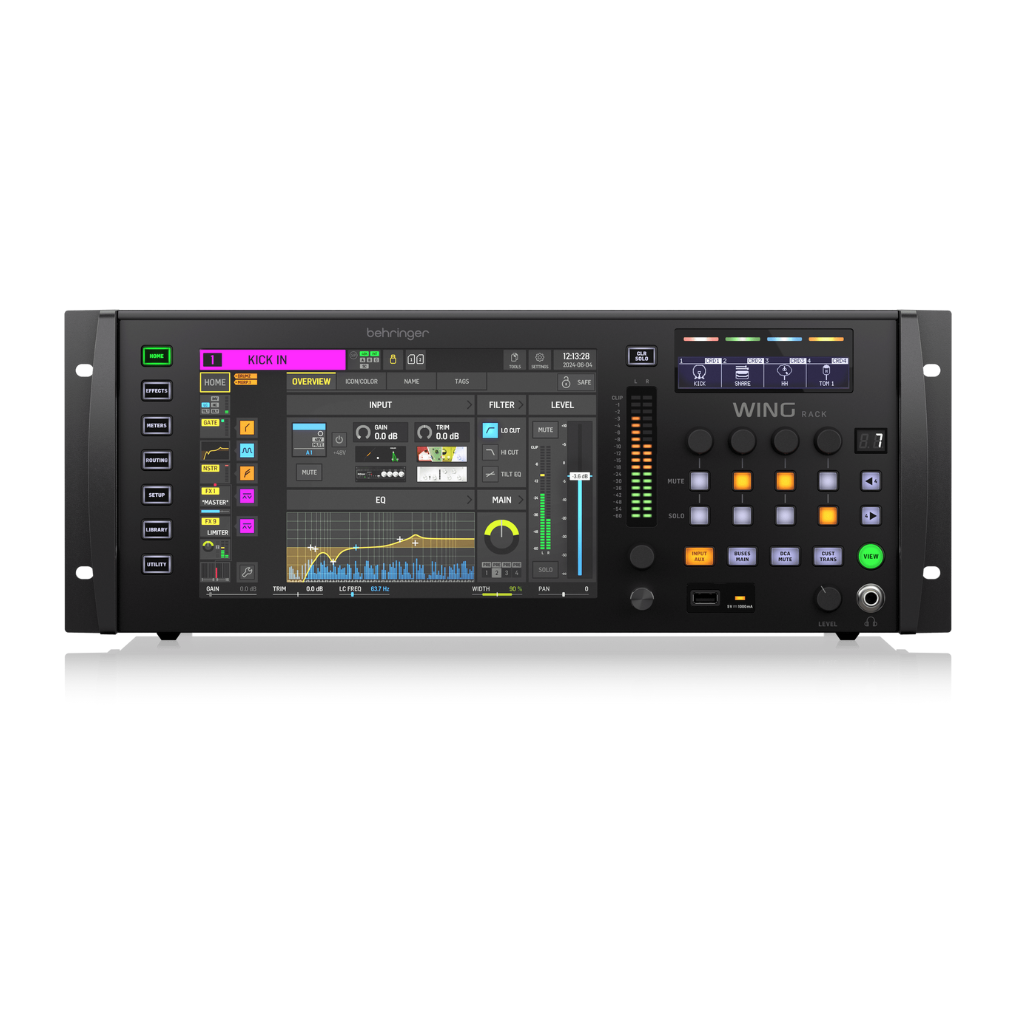

The Behringer WING RACK is a compact, rack-mountable 48-channel, 28-bus full-stereo digital mixing engine designed for professional touring systems, studio installations, broadcast setups, and modern houses of worship. Featuring 24 Midas PRO microphone preamps, ultra-low-latency AES50 networking, a 10.1" multi-touch display, and a powerful dual-SD recorder, this 4U rack mixer delivers flagship WING performance in a space-saving design.
Built for engineers who need high-end processing in a portable form factor, the WING RACK offers 16 stereo FX engines, full plugin architecture, advanced AoIP expansion (Dante, SoundGrid, MADI), and complete remote control via desktop & mobile software. Perfect for Nepal’s touring companies, churches, studios, and event venues.
Key Features
- 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
- Continuously adjustable front panel for comfortable mixing experience when mounted in a rack
- 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
- 10.1 inch main display with multi-touch screen and adjustable swivel
- 8 buttons and 4 encoders for standard mixing or transport functions, or with Custom Controls to make WING RACK your personal console.
- Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
- 16 True-stereo effects processing engines, with 80+ world-class algorithms
- 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- 40 Stereo Input Channels with 5 variable plug-in processing slots each
- 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- 8 Mute Groups and 8 DCA's for track grouping and consolidation
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
- Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI…
- StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- 4 additional phones outputs with hi-performance headphone amplifiers for IEM applications
- 4 channel GPIO for controlling almost anything with WING
- 5-Pin MIDI in and out for control and synchronization with external devices
- DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
- 19" rack-mountable with 4HU form-factor
Specifications
input/Output Characteristics
|
Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting)
|
10 Hz - 20 kHz
|
|
Dynamic range, analog in to analog out (typical), XLR / aux
|
111 dB / 108 dB
|
|
A/D dynamic range, preamplifier and converter (typical), XLR / aux
|
112 dB / 110 dB
|
|
D/A dynamic range, converter and output (typical), XLR / aux
|
118 dB / 112 dB
|
|
Crosstalk rejection @ 1 kHz, adjacent channels
|
100 dB
|
|
Output level, XLR connectors (nominal / maximum)
|
+4 dBu / +21 dBu
|
|
Output impedance, XLR connectors (unbalanced / balanced)
|
75 Ω / 75 Ω
|
|
Input impedance, TRS connectors (unbalanced / balanced)
|
20 kΩ / 40 kΩ
|
|
Non-clip maximum input level, TRS connectors
|
+16 dBu
|
|
Aux output level, TRS (nominal / maximum)
|
+4 dBu / +16 dBu
|
|
Aux output impedance, TRS (unbalanced / balanced)
|
150 Ω / 300 Ω
|
|
Phones output impedance / maximum output level
|
1W Max @ 30 Ohm
|
|
Residual noise level, XLR out 1-16 connectors, unity gain
|
-97 dBu
|
|
Residual noise level, aux and monitor TRS out connectors
|
-95 dBu
|
Displays
|
Main screen
|
10.1" TFT LCD, 1280 x 800 px, capacitive touch
|
|
Main screen swivel, continuous adjustment
|
15°- 60°
|
|
4-channel group LCD screen with RGB color strip per channel
|
320 x 48 monochrome
|
Controls
|
Touch-sensitive rotary controls
|
4
|
|
Custom controls
|
8
|
|
Fully assignable rotary controls
|
4
|
|
Fully assignable backlit buttons
|
8 + 8
|
|
Variable rotary controls / buttons
|
4 / 4
|
Power
|
Switch-mode power supply
|
Auto-ranging 100-240 VAC (50/60 Hz)
|
|
Power consumption
|
130 W
|
Physical
|
Standard operating temperature range
|
5°C – 40°C (41°F – 104°F)
|
|
Dimensions (HxWxD)
|
48.6 x 32.6 x 18.3 cm
|
|
Weight
|
9.44 kg
|
