BEHRINGER WING COMPACT – 48-Channel Stereo Digital Mixer

BEHRINGER WING COMPACT – 48-Channel Stereo Digital Mixing Console

The Behringer WING COMPACT is a powerful 48-channel, 28-bus full-stereo digital mixing console designed for professional live sound, studio production, broadcast, and church audio. Engineered with 24 Midas PRO microphone preamps, premium converters, and a 10.1” multi-touch swivel display, this compact version of the flagship WING delivers world-class sonic performance in a portable, rack-mountable format.

Whether you’re mixing concerts, managing church services, upgrading your studio, or running live events in Nepal, the WING COMPACT offers precision control, advanced routing, dual SD recording, and customizable workflow—all in a rugged, travel-friendly design.

 Key Features

 Professional Audio Performance

• 24 Midas PRO mic preamps for pristine, transparent audio

• 8 Midas PRO outputs for clean and powerful sound

• 16 true-stereo FX engines with 80+ premium algorithms

 Advanced Touch Workflow

• 10.1” multi-touch display with adjustable swivel

• 13 motorized 100 mm faders + dedicated master fader

• “Sends on Fader” workflow with color TFT display

• 20 customizable control buttons

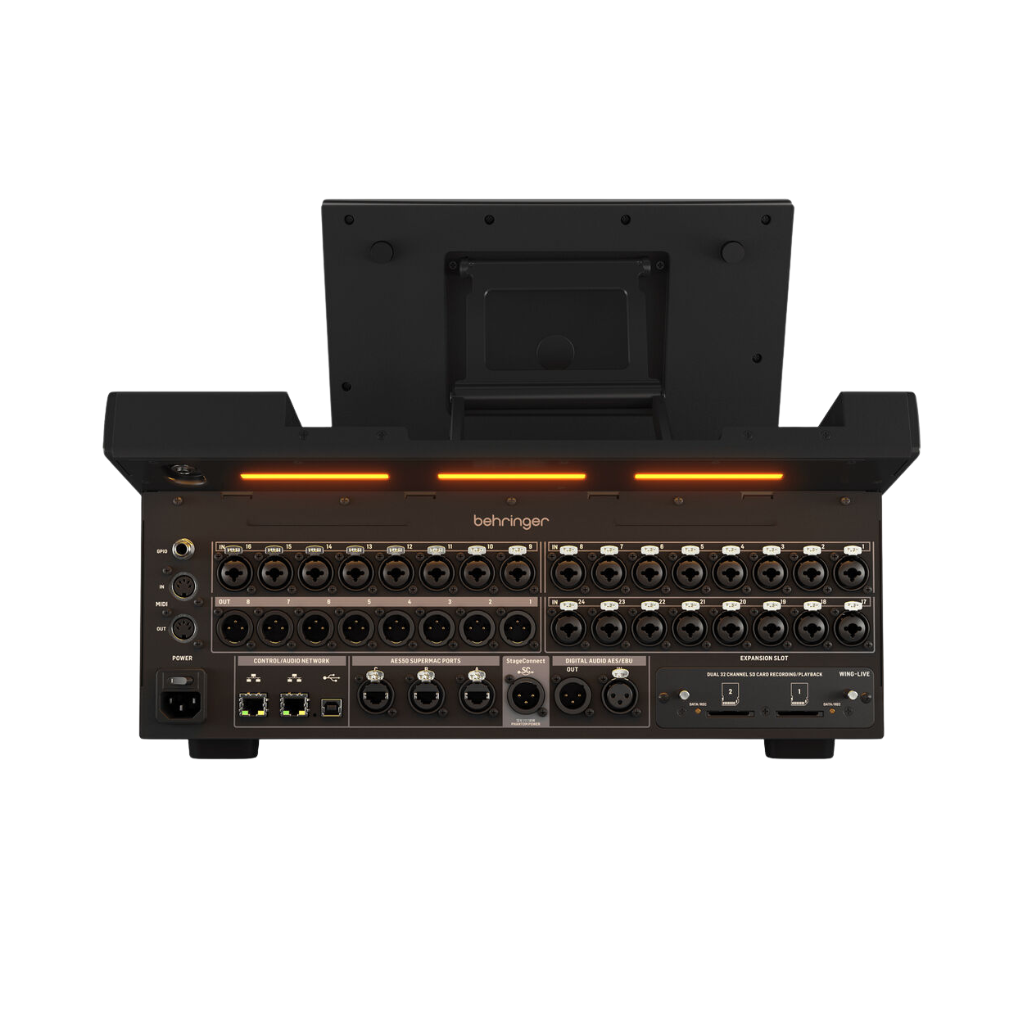

 Connectivity & Expansion

• 3x AES50 ports supporting 144 channels of audio I/O

• StageConnect for 32-channel send/return over a single XLR

• USB audio/MIDI interface supporting 48×48 channels

• Optional Dante, SoundGrid, or MADI AoIP expansion

 Recording & Playback

• Dual SD-card recorder (up to 64 tracks)

• Onboard markers for live performance navigation

 Flexible Mixing Architecture

• 40 stereo input channels + 8 stereo aux channels

• 4 main, 8 matrix, and 16 aux stereo buses

• Per-channel EQ, Dynamics, Gate, plugin slots

• 8 DCA groups + 8 mute groups

 Remote & DAW Control

• 2 Ethernet ports for remote app control

• Control presets for Ableton, Logic, Pro Tools, Cubase, Reaper & more

• Compatible with WING-CoPilot, WING-Edit, and WING-Q

 Portable & Rack-Mountable

• 19” rack-mountable in 3 positions

• Ideal for touring rigs, church FOH racks & portable studios

 Specifications

Audio

• Frequency Response: 10 Hz – 20 kHz

• Max Channels: 48 stereo input / 28 stereo buses

• FX Engines: 16 true-stereo with 80+ algorithms

• USB Interface: 48-in / 48-out

I/O

• Preamps: 24 × Midas PRO

• Outputs: 8 × Midas PRO

• AES50 Ports: 3 (144 channels)

• StageConnect: 32-channel bidirectional

• MIDI: 5-pin In/Out

Display & Controls

• Main Screen: 10.1” TFT multi-touch

• Faders: 13 × 100 mm motorized

• Custom Buttons: 20 programmable

Physical

• Rack-mountable: 19” (3-position)

• Power: 100–240 VAC auto-ranging

• Software Control: Desktop & mobile apps
