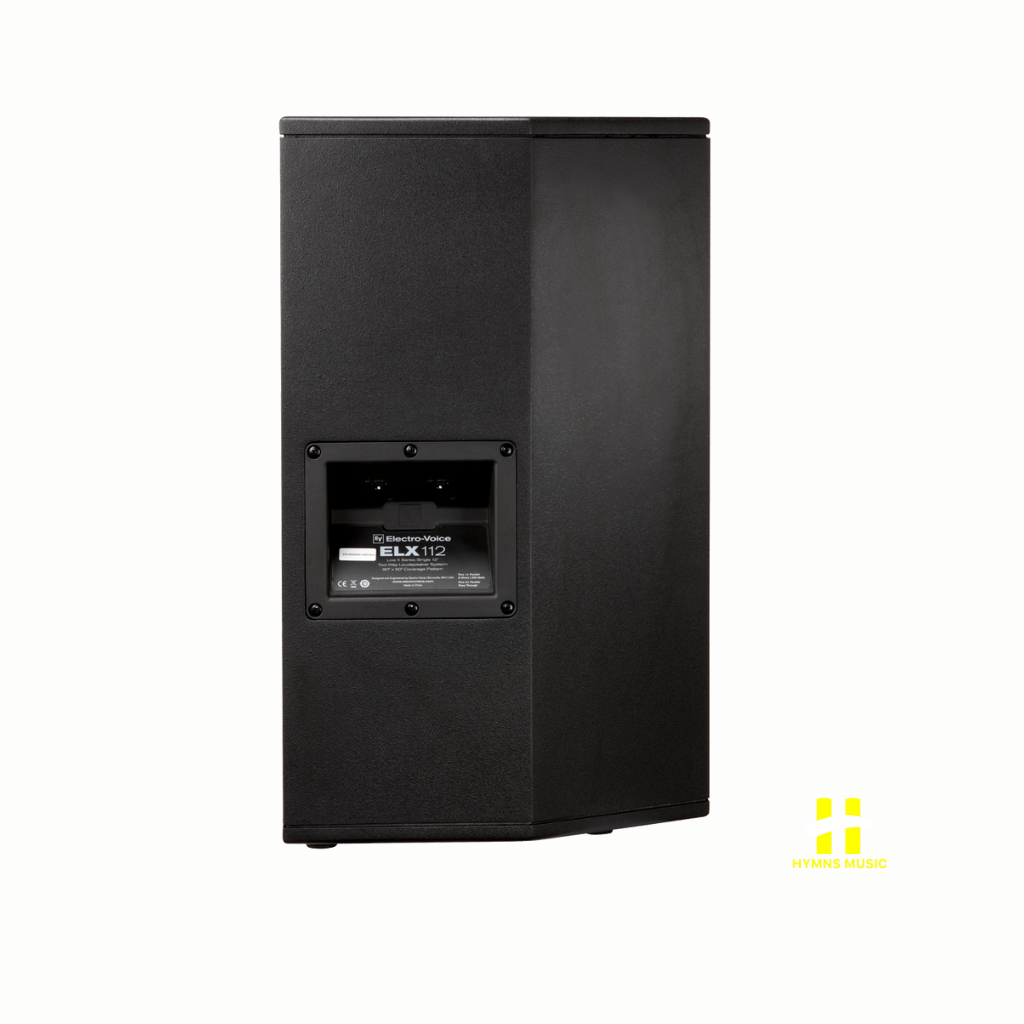

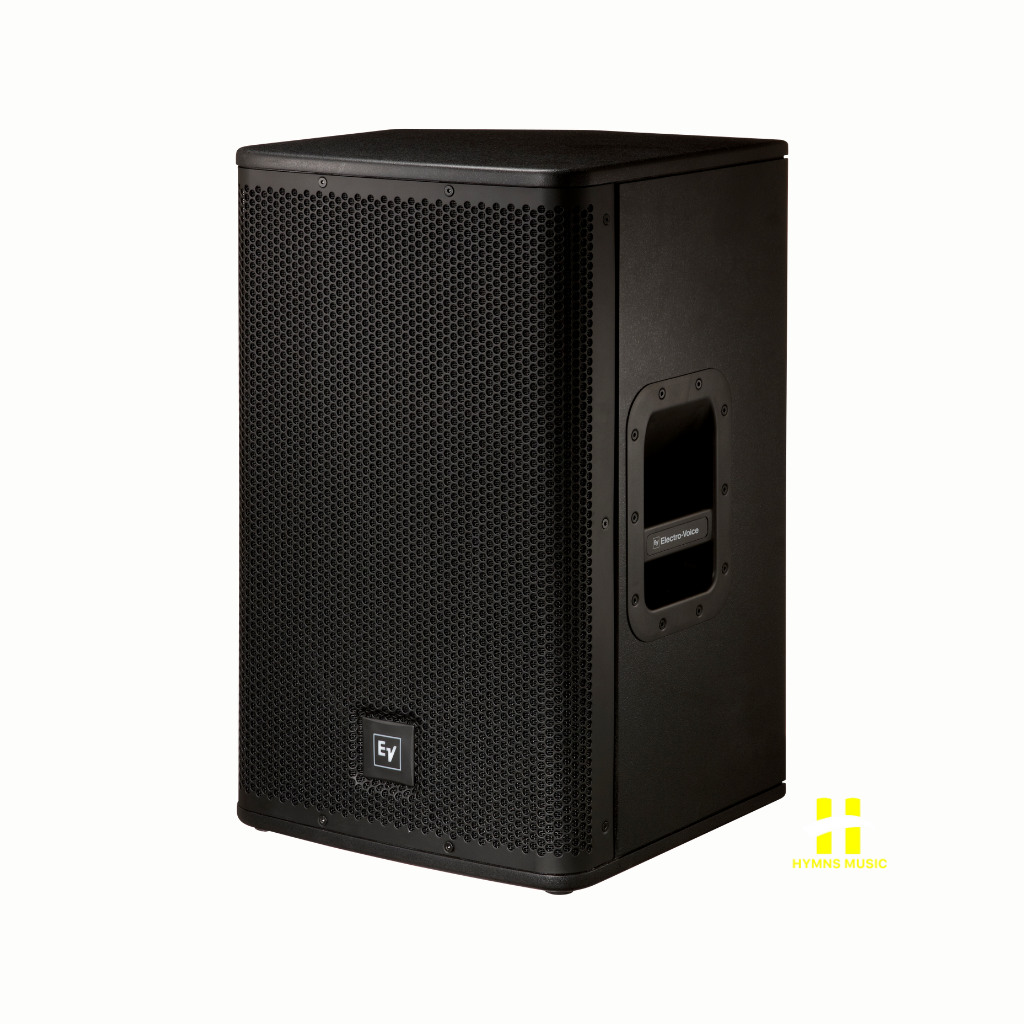

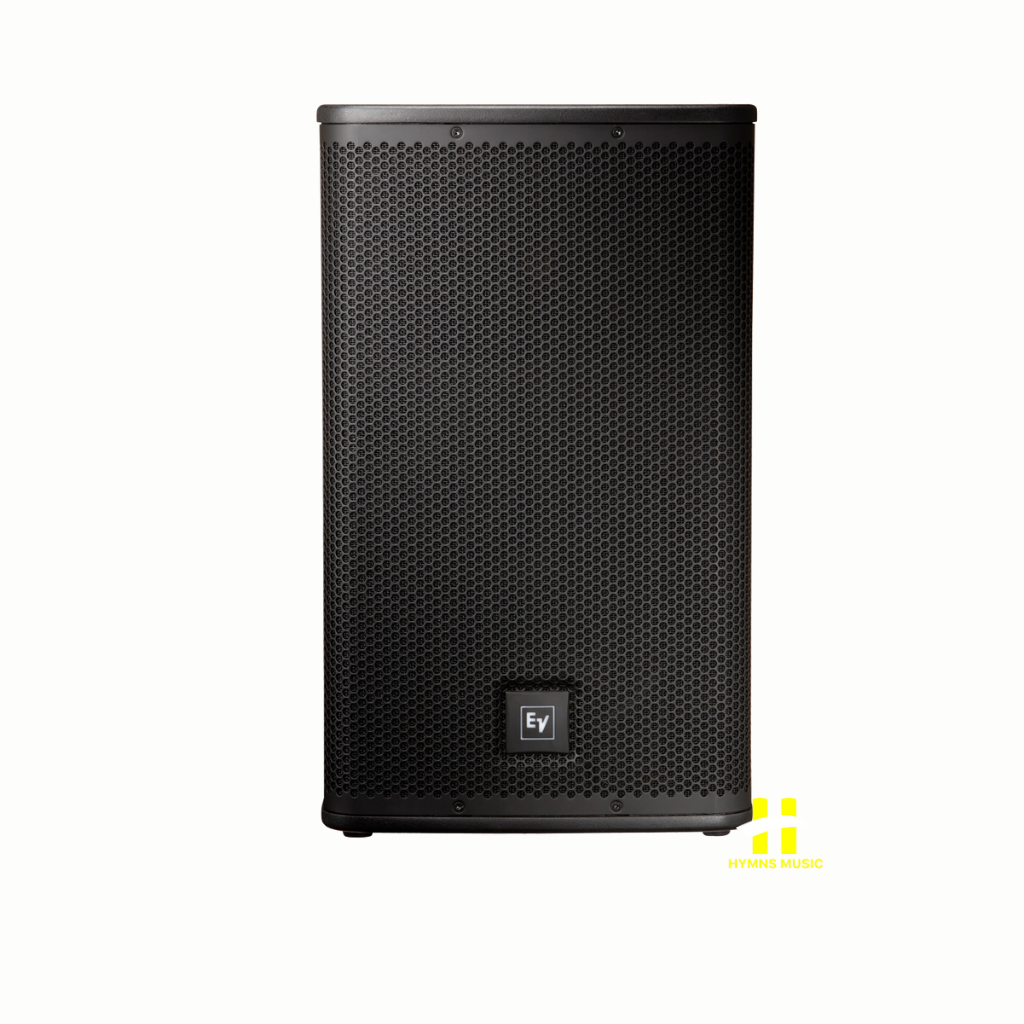

Electro-Voice ELX112 12" Passive Loudspeaker
The Electro-Voice ELX112 is a compact, high-performance 12" passive loudspeaker built for live sound reinforcement, stage monitoring, portable PA systems, and installation environments. Designed with EV’s legendary engineering, the ELX112 combines the powerful EVS-12K woofer, a precision 1.5" DH-1K titanium compression driver, and a 90° × 50° waveguide for accurate, consistent coverage.
With 250W continuous / 1000W peak power handling, 94 dB sensitivity, and a maximum SPL of 132 dB, this speaker delivers impressive output in a lightweight, road-ready enclosure. Whether used as a pole-mounted main speaker or a floor monitor at a 60° stage angle, the ELX112 performs with clarity, punch, and reliability.
A durable 15mm braced plywood cabinet with textured black finish makes it ideal for touring, rental applications, worship venues, bands, DJs, and event companies across Nepal.
Key Features
-
12” Passive Loudspeaker for live sound, FOH, and stage monitoring.
-
EVS-12K woofer provides deep, tight low-frequency performance.
-
DH-1K titanium HF compression driver ensures clear, detailed highs.
-
Wide 90° × 50° coverage for even audience distribution.
-
132 dB maximum SPL with 94 dB sensitivity for high output.
-
250W continuous / 1000W peak power handling.
-

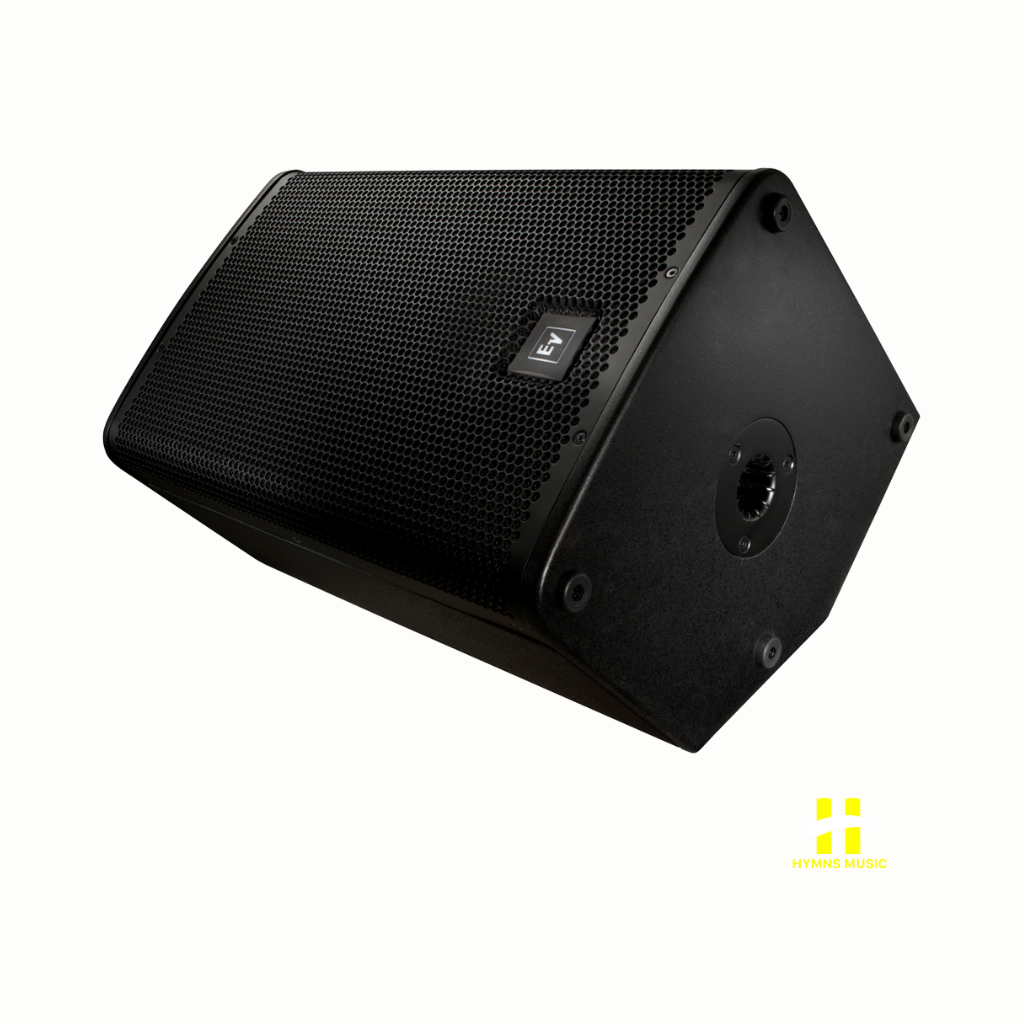

60° monitor angle, perfect for stage wedge applications.
-
Rugged 15mm plywood enclosure, internally braced with textured paint.
-
Dual NL4 connectors for flexible wiring and daisy-chaining.
-
Compatible with Live X subwoofers and tripod stands (TSS-1, TSP-1, ASP-1).
-
Lightweight and portable—great for events, touring, and installations.
Specifications
| Specification |
Details |
| Frequency Response (-3 dB) |
82 Hz – 18 kHz |
| Frequency Range (-10 dB) |
55 Hz – 20 kHz |
| Axial Sensitivity |
94 dB |
| Maximum SPL |
132 dB |
| Recommended High-Pass |
45 Hz |
| Coverage (H × V) |
90° × 50° |
| Power Handling |
250W Continuous / 1000W Peak |
| LF Driver |
EVS-12K 12" (305mm) |
| HF Driver |
DH-1K 1.5" titanium compression driver |
| Crossover Frequency |
2.1 kHz |
| Nominal Impedance |
8Ω |
| Minimum Impedance |
7.0Ω |
| Connectors |
Dual NL4 |
| Enclosure |
15mm plywood, braced, textured black paint |
| Grille |
18GA steel with black powdercoat |
| Dimensions (H × W × D) |
607 × 362 × 340 mm |
| Net Weight |
16 kg |
| Shipping Weight |
19.9 kg |
| Accessories |
TSS-1 tripod, TSP-1 stand kit, ASP-1 subwoofer stand |
