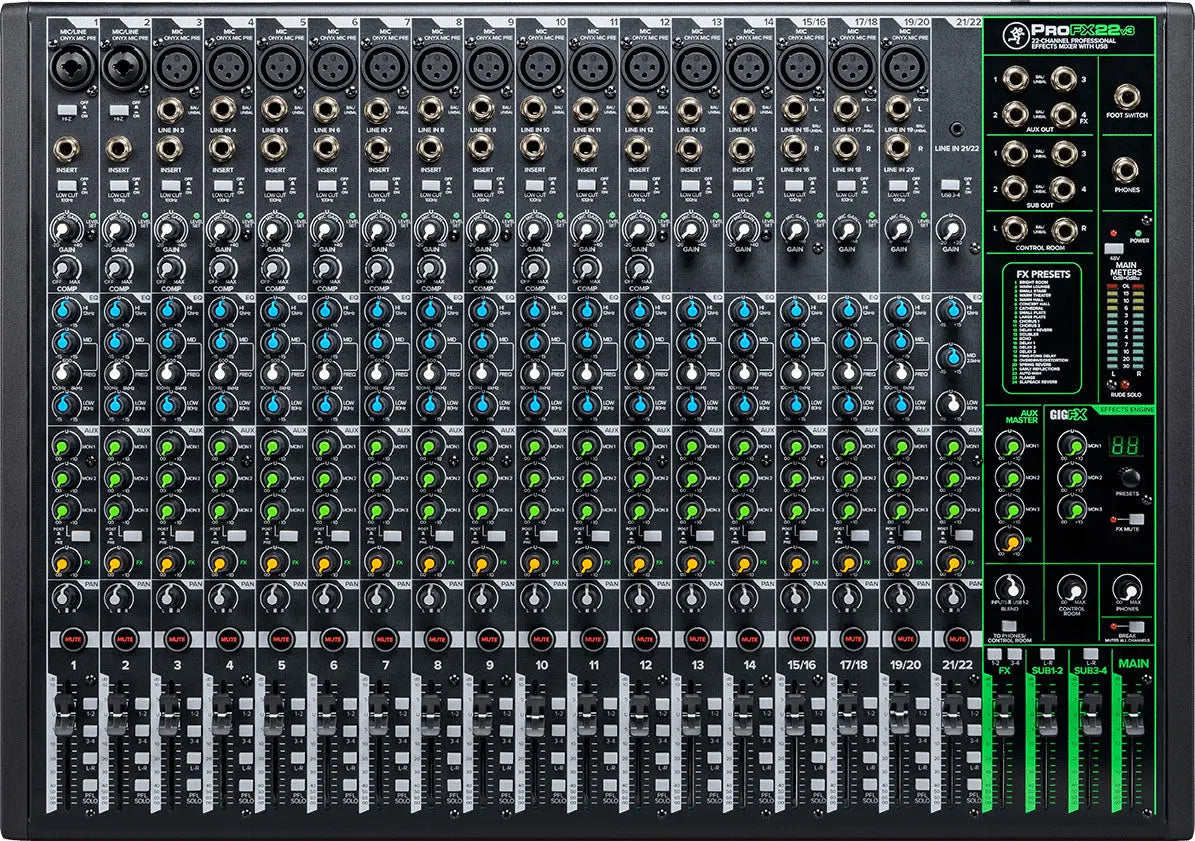

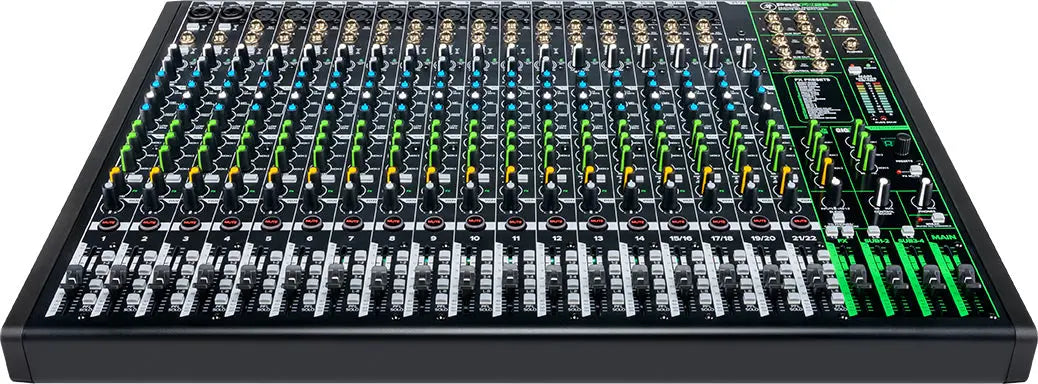

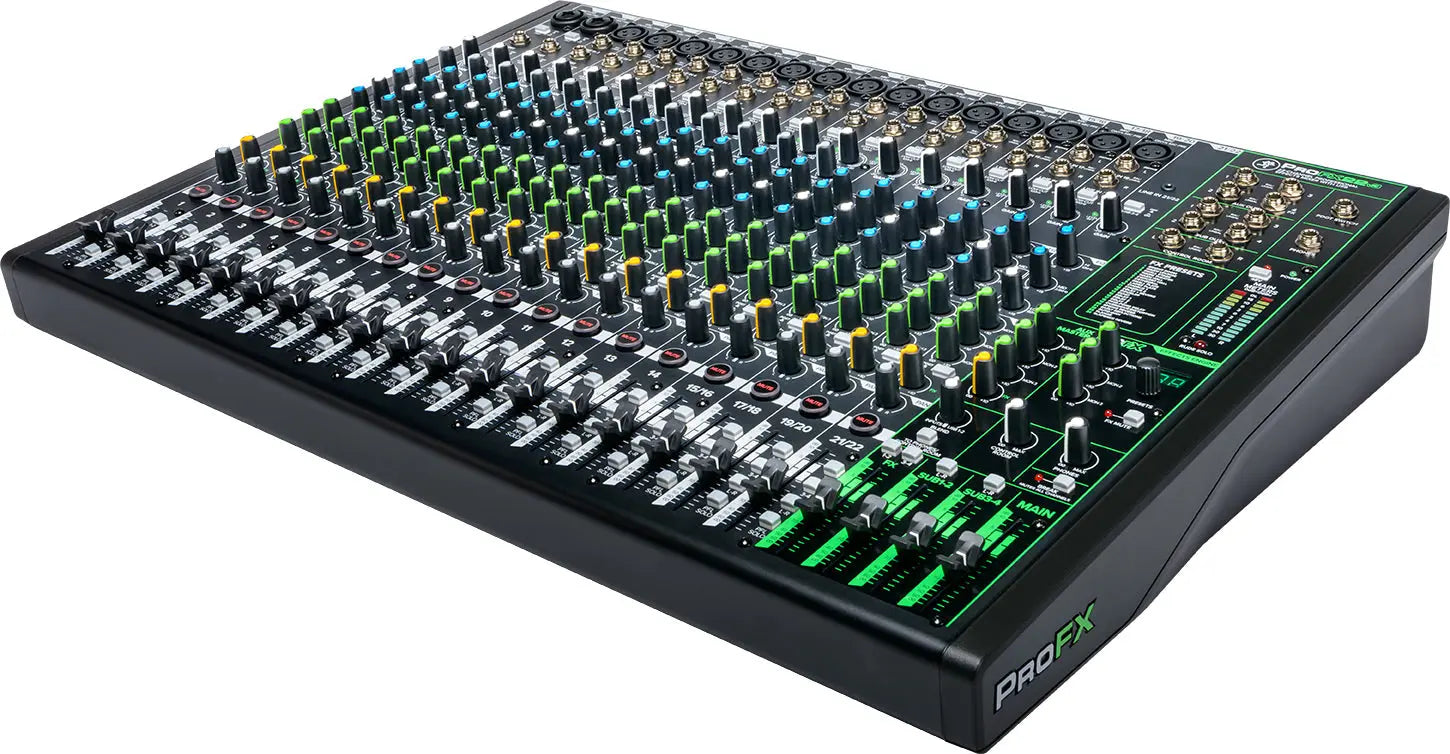

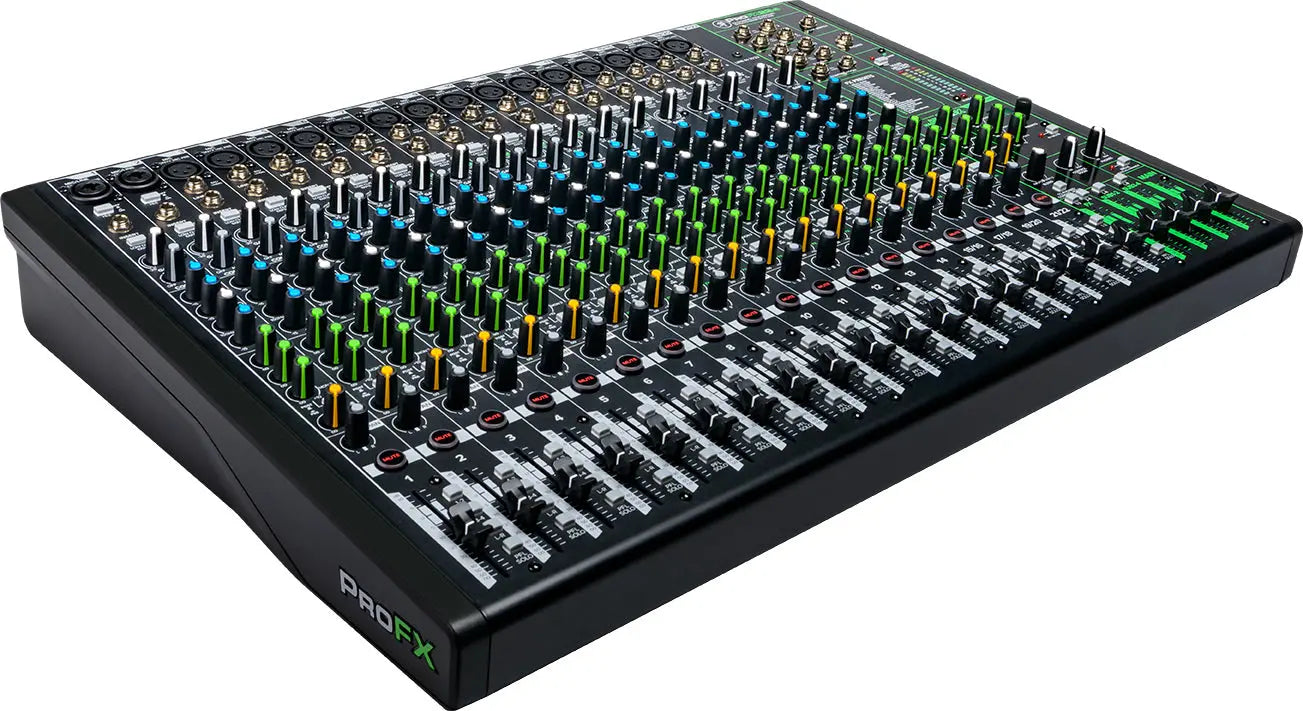

Mackie ProFX22v3 22-Channel Professional USB Mixer
MIX. RECORD. CREATE — AT THE NEXT LEVEL.
The Mackie ProFX22v3 delivers the power, flexibility, and professional quality you need for both studio and live sound. With 17 award-winning Onyx™ preamps, a high-resolution GigFX™ effects engine, and 192kHz USB recording, this 22-channel mixer offers crystal-clear sound, ultra-low noise, and endless creative possibilities.
Whether you're recording in the studio, performing live, or streaming online, the ProFX22v3 ensures your sound stays polished and professional. With Waveform™ OEM DAW and the DAW Essentials Collection™, you’ll have all the software tools you need to record, mix, and master like a pro.
Key Features
-
17 Onyx™ Mic Preamps — Delivers up to 60dB of gain with ultra-low noise and rich, transparent tone.
-
GigFX™ Effects Engine — 24 studio-quality effects including reverb, delay, and chorus.
-
192kHz USB Recording — Capture studio-quality sound directly to your Mac or PC.
-
Latency-Free Direct Monitoring — Monitor in real-time without delay.
-
Hi-Z Inputs — Plug guitars, basses, and instruments directly in—no DI box needed.
-
3-Band EQ with Sweepable Mids — Sculpt your tone with precision on every channel.
-
Dedicated Control Room Outputs — Independent volume for monitoring.
-
Rugged Design — Built for durability in the studio or on stage.
-
Waveform™ OEM + DAW Essentials™ — Includes 16 professional plug-ins for sound shaping and mixing.
Full Specifications
-
Mixer Type: Analog USB Mixer
-
Channels: 22
-
Mic Preamps: 17 Onyx preamps with 60dB gain
-
EQ: 3-band EQ with bypass & sweepable mids
-
FX Engine: 24 GigFX high-resolution effects
-
Recording Interface: 2x4 USB, 192kHz sample rate
-
Monitoring: Latency-free direct monitoring with blend control
-
Inputs: XLR, Line, Hi-Z Instrument
-
Compression: Built-in single-knob compressor
-
Phantom Power: +48V on all channels
-
Low Cut Filter: 100Hz
-
Aux/Monitor Sends: Per-channel dedicated control
-

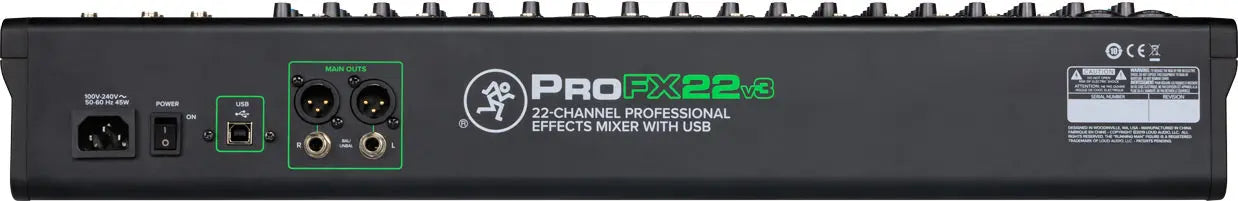

Outputs: Main, Subgroup, Control Room, Headphones
-
Headphone Output: Independent volume & blend control
-
Footswitch Input: FX mute control
-
Software Included: Waveform OEM DAW + DAW Essentials FX Bundle
-
Construction: All-metal chassis for durability
Included in the Box
Key Features of the Mackie ProFX22v3
The Mackie ProFX22v3 is a powerful 22-channel USB mixer that combines great sound quality with usability. It features high-quality preamps and an advanced FX engine, which means you can enjoy superior sound production for live performances and studio recordings. With built-in effects like reverbs and delays, this mixer allows you to sculpt your sound beautifully, ensuring that your performances stand out. Furthermore, it integrates seamlessly with digital audio workstations, allowing for easy recording and playback.
User-Friendly Design
This USB mixer is not only packed with features, but it also boasts an intuitive layout. The controls are well-placed, making it easy for both new and experienced users to navigate. Whether you are adjusting levels or selecting effects, the process is straightforward and quick. Because of its user-friendly design, audio professionals can spend less time setting up and more time focusing on delivering outstanding performances.
Versatility in Applications
The Mackie ProFX22v3 is ideal for a variety of applications, from live sound reinforcement to studio recording. It is suitable for musicians, broadcasters, and podcasters alike, providing an all-in-one solution for your audio needs. Its rugged construction ensures that it can withstand the rigors of on-the-road usage, so you can take it anywhere without worrying about damage. This flexibility means that whether you’re working in a small venue or a large studio, the Mackie ProFX22v3 has you covered.
