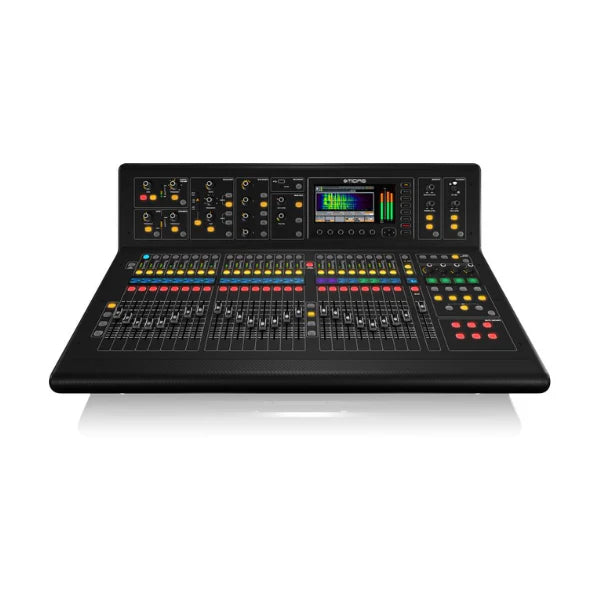

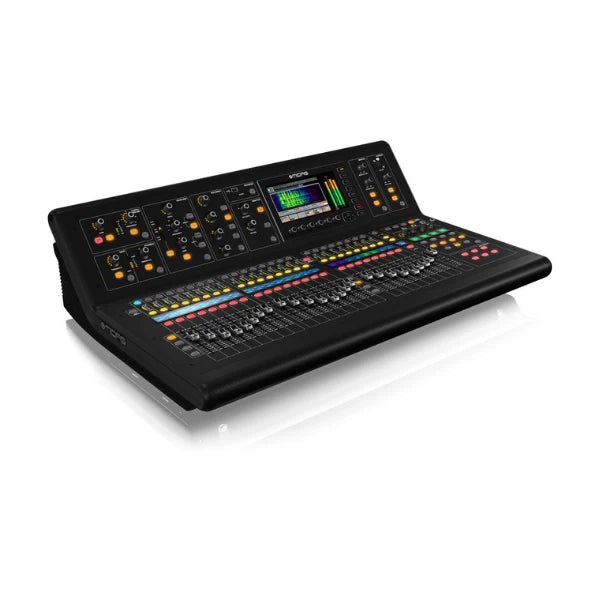

Midas M32 Live – Premium Digital Mixing Console for Live Sound & Studio

The Midas M32 Live is a revolutionary mid-format digital console designed for professionals who demand pristine audio quality, cutting-edge technology, and uncompromising durability. With legendary Midas PRO Series microphone preamps, ultra-fast processing, and high-resolution 192 kHz ADC/DAC, the M32 Live delivers world-class performance for concerts, studios, worship venues, broadcast setups, and touring systems.

Engineered with lightweight carbon fiber, high-impact aluminum, and steel, the M32 Live offers unmatched strength without unnecessary weight. The custom Midas PRO motorized faders, rated for 1 million cycles, guarantee long-term reliability—perfect for stage, studio, and road use.

Whether you're running complex live shows or high-end studio sessions, the M32 Live gives you expanded routing, deep control, and studio-grade effects powered by true 40-bit floating-point digital processing. Record up to 32 channels directly to dual SD cards, stream via USB, or expand your I/O using AES50 networking.

Key Features

• Digital console with up to 40 simultaneous input channels

• 32 Midas PRO microphone preamplifiers

• 25 mix buses—time-aligned & phase-coherent

• AES50 networking supports up to 96 inputs & 96 outputs

• 32-channel live recording/playback via dual SD/SDHC

• Record up to 3 hours of 32-channel WAV audio per session

• Premium construction: carbon fiber, aluminum & steel

• 40-bit floating point signal processing

• 8 DCA groups + 6 mute groups

• 8 FX engines with studio-grade processors

• 25 Midas PRO motorized faders (1M cycle rating)

• 32×32 USB 2.0 audio interface

• DAW control via Mackie Control & HUI

• Wireless control via Midas iOS apps (optional)

Technical Specifications

Processing

• Input channels: 32, Aux: 8, FX Returns: 8

• Output channels: 16 buses, 6 matrices, LRC

• Show automation: 500 cues / 100 snippets

• Scene recall: 100 total recall scenes

• DSP: 40-bit floating point

• A/D converter: 114 dB (A-weighted)

• D/A converter: 120 dB (A-weighted)

• Console latency: 0.8 ms

• Network latency: 1.1 ms

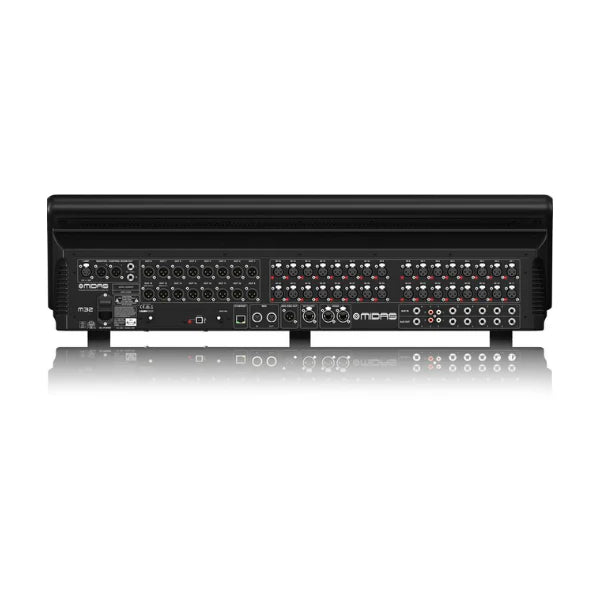

Connectors

• 32 × Midas PRO mic preamps (XLR)

• 1 × Talkback (XLR)

• RCA I/O: 2

• 16 × XLR outputs

• Monitor Out (XLR/TRS): 2

• Aux I/O (TRS): 6

• Headphones (TRS): 2

• AES/EBU Out (XLR): 1

• AES50 ports: 2

• USB Type A & Type B

• ULTRANET P-16 port

• Ethernet (RJ45) remote control

Mic Input Characteristics

• THD+N (0 dB gain): <0.01%

• Max input level: +23 dBu

• Phantom power: +48V

• EIN: -125 dB (unweighted)

• CMRR: >90 dB

Audio Performance

• Frequency response: 20 Hz – 20 kHz (±1 dB)

• Dynamic range (analog in → out): 106 dB

• Crosstalk: 100 dB

Display

• Main screen: 7" TFT LCD (800 × 480)

• Channel LCD: 128 × 64 RGB backlit

• Meter: 24-segment

Power & Physical

• Auto-ranging supply: 100–240 VAC

• Power consumption: 120 W

• Dimensions: 891 × 612 × 256 mm

• Weight: 25 kg
