EV ELX200-12P - 12" Powered Loudspeaker with 1200W

Exploring the EV ELX200-12P Powered Loudspeaker

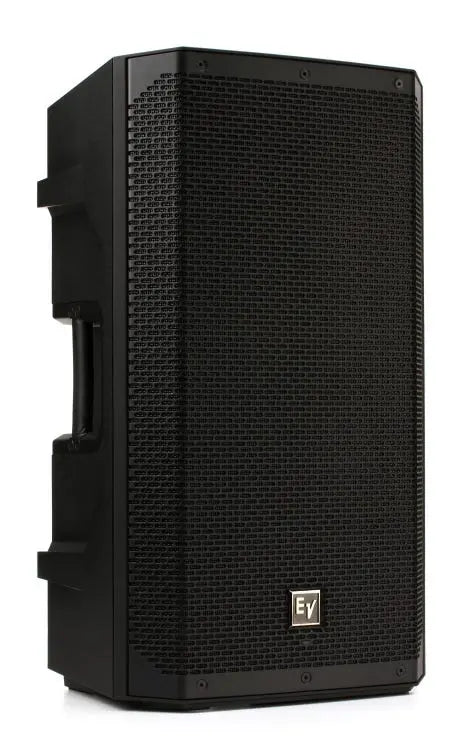

Electro-Voice ELX200-12P

12" Powered Loudspeaker with 1200W Class-D Amplifier & QuickSmartDSP

The Electro-Voice ELX200-12P is a powerful, versatile, and lightweight 12-inch powered loudspeaker, engineered for professional performance in live sound, rental, DJ, club, worship, and installation environments. Delivering up to 130 dB SPL, controlled coverage, and industry-leading DSP tools, the ELX200-12P provides exceptional sound with unmatched convenience.

Featuring EV’s QuickSmartDSP, SST waveguide technology, Bluetooth-enabled QuickSmart Mobile app (in select countries), and rugged polypropylene construction, this model is built for both demanding portable applications and permanent installations.

 Key Features

 EV QuickSmart Mobile App (BTLE)

• Wireless control, setup, and monitoring for up to 6 ELX200 speakers

• Live alerts for limiter, overdrive, and system performance

• Adjust levels and settings while standing in front of your speakers

 QuickSmartDSP – Industry-Leading Digital Processing

• Four optimized presets: Music, Live, Speech, Club

• Sub/top system-match crossovers

• 3-band EQ

• 5 user-programmable presets

• Input meters, limiter monitoring, and gain optimization via LCD

 High-Efficiency 1200W Class-D Power Amplifier

• Delivers up to 130 dB SPL

• Provides a powerful, clean, distortion-free output

 EV SST Waveguide Technology

• Patent-protected design

• Consistent 90° × 60° coverage

• Reduced distortion & improved acoustic loading

 Professional Build Quality

• Durable polypropylene enclosure

• Three M10 suspension points

• Integrated pole mount

• EV ZLX-style three-handle design for easy lifting

 Technical Specifications

Performance

• Frequency Response (-3 dB): 57 Hz – 16 kHz

• Frequency Range (-10 dB): 51 Hz – 20 kHz

• Maximum SPL: 130 dB

• Power Rating: 1200 W

• Coverage: 90° × 60°

Transducers

• LF Driver: 12" EVS-12M woofer

• HF Driver: DH-1L 1" titanium compression driver

• Crossover Frequency: 1700 Hz

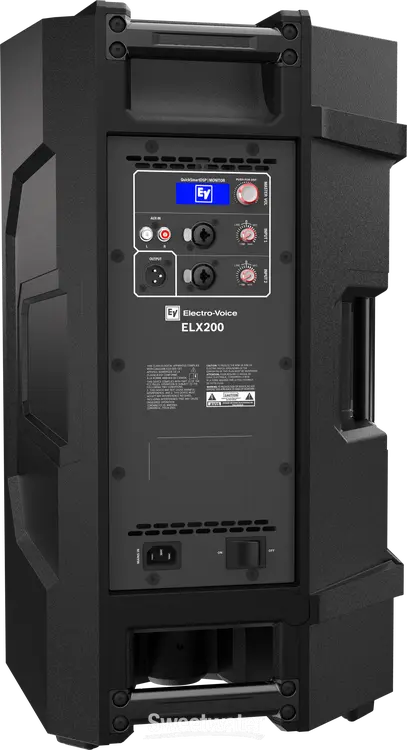

Connectivity

• 2 × XLR/TRS combo inputs

• 1 × Stereo RCA input

• 1 × XLR output for linking

• LCD menu with DSP controls

Enclosure

• Material: Polypropylene

• Grille: 18-gauge steel with powdercoat

• Suspension: 3 × M10 mounting points

• Colors: Black or White

Dimensions & Weight

• Height: 629 mm (24.8 in)

• Width: 363 mm (14.3 in)

• Depth: 344 mm (13.6 in)

• Net Weight: 15.6 kg

• Shipping Weight: 17.7 kg

Power

• Voltage: 100–240 V~, 50/60 Hz

• Current Consumption: 1.2 – 0.6 A

 Ideal For

• DJs and bands

• Live sound & events

• Houses of worship

• Clubs, bars, and lounges

• Corporate AV & presentations

• Rental companies

• Portable PA systems

 Why Buy From Hymns Music Nepal

•  100% genuine Electro-Voice products

•  Authorized dealer pricing

•  Expert guidance from sound engineers

•  Reliable after-sales support

•  Trusted by Nepal’s top musicians, venues & churches

At Hymns Music Nepal, we help you build sound systems that truly perform.

Premium Audio Performance

The EV ELX200-12P is an Active DSP-Controlled Full-Range Loudspeaker that delivers exceptional sound quality. With its powerful 1200W amplifier, this speaker is designed for both professional and personal use, providing clear and dynamic audio across a wide range of frequencies. This means you can enjoy rich bass and crisp highs, making it perfect for live performances, DJ sets, or any event where high-quality sound is essential.

Advanced DSP Control

What sets the EV ELX200-12P apart is its advanced digital signal processing (DSP) technology. This speaker automatically adjusts its output to enhance performance, so you don’t have to worry about sound distortion or loss of quality. Because of this DSP control, the EV ELX200-12P adapts to different acoustical environments, ensuring that your sound is always optimized, whether indoors or outdoors.

Durability and Portability

In addition to its remarkable performance, the EV ELX200-12P is built to last. The sturdy construction ensures that it can handle the rigors of transport and setup, making it ideal for touring musicians or mobile DJs. Also, its lightweight design and integrated handles make it easy to move from one venue to another, so you can focus on delivering great sound wherever you go.

Unmatched Sound Performance

The EV ELX200-12P is a remarkable 12" powered loudspeaker that delivers an impressive 1200 watts of power. This powerful loudspeaker ensures crystal-clear audio quality, making it ideal for live performances and events. Its active DSP control contributes to its exceptional sound reproduction, maintaining clarity and balance across various frequencies. When you choose the EV ELX200-12P, you're guaranteed a sound experience that excels in both volume and quality, making it a favorite among musicians and audio professionals alike.

Innovative Design and Portability

Designed with both aesthetics and functionality in mind, the EV ELX200-12P features a rugged yet lightweight construction. This makes it easy to transport and set up, whether you're in a small venue or a large auditorium. The durable housing not only protects the internal components but also adds to the overall build quality. As a result, you can rely on the ELX200-12P to perform reliably in tough conditions, ensuring that your audio setup remains consistent and professional.

Versatile Connectivity Options

What sets the EV ELX200-12P apart is its versatility in connectivity. It features multiple input options, allowing you to connect various audio sources with ease. Whether you are using a microphone, a musical instrument, or a playback device, you can seamlessly integrate it into your sound system. This adaptability is essential for live performances, as it enables you to create the sound you envision without the hassle of complicated setups. Therefore, the EV ELX200-12P stands as a top choice for diverse audio needs.
