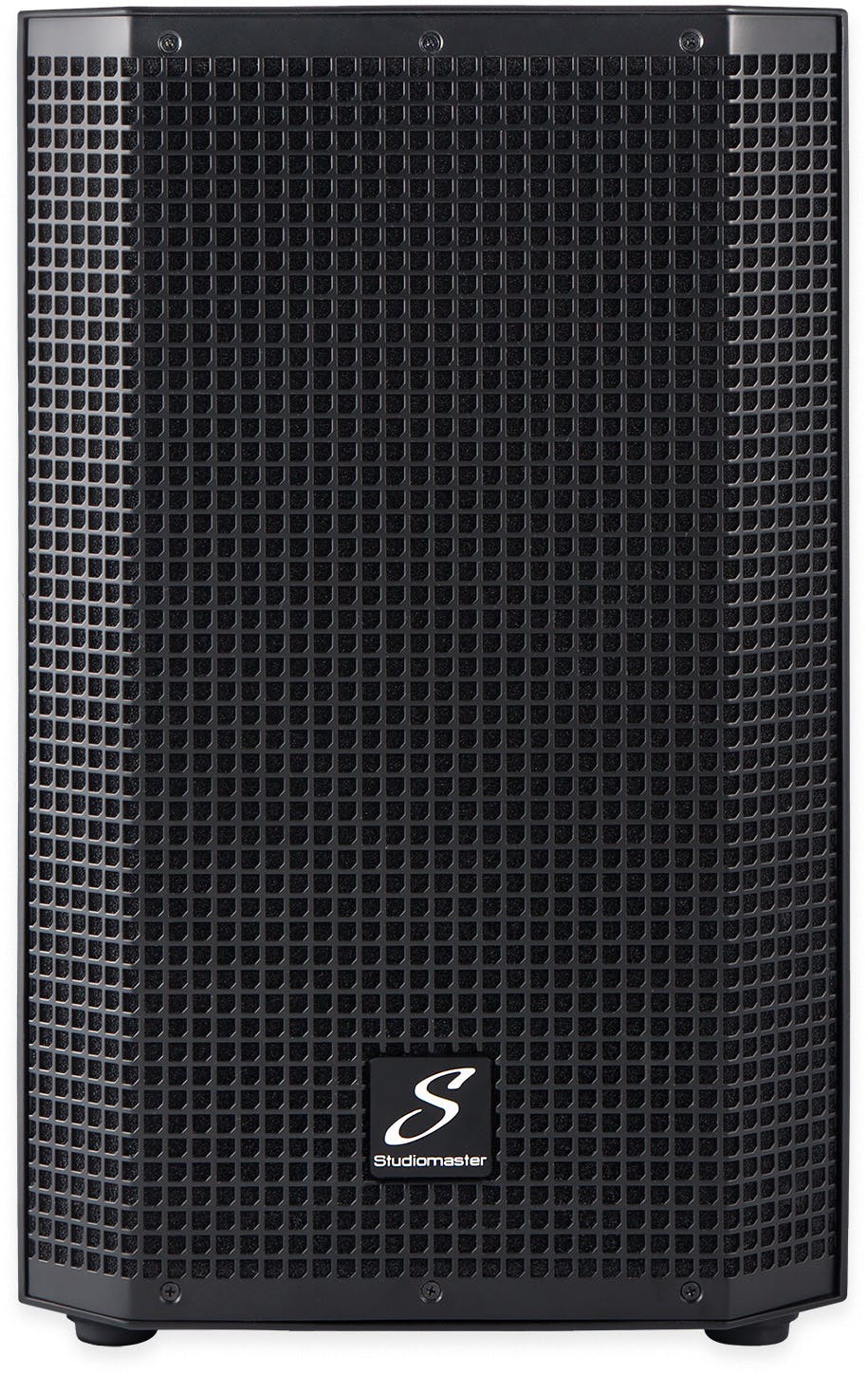

The Studiomaster Vortex 10A is a 10-inch active coaxial PA speaker designed for portable live sound systems, churches, small bands, and mobile DJs who need a balance of power, clarity, and easy setup.
In real use, it delivers a loud and punchy sound with up to 124 dB SPL, which is impressive for its compact size. The coaxial driver design helps produce a more focused and natural sound, especially for vocals, since the highs and lows come from the same point source. It runs on a 1400W peak Class D amplifier system with a rated 350W RMS output, giving it enough headroom for small to medium venues without distortion at normal levels. The built-in 24-bit DSP system includes multiple modes like music, live, DJ, speech, and monitor, along with 3-band EQ, delay, limiter, and volume control, making it flexible for different live situations.
Key Features
-
10” Active Coaxial PA Speaker – Compact size with clear, balanced sound
-
1400W Peak Power Output – Strong performance for small to medium venues
-
Coaxial Driver Design – Better phase alignment = clearer vocals and instruments
-
Built-in 24-bit DSP Processing – Includes EQ, delay, limiter, and sound modes
-
5 DSP Presets – Music, Live, DJ, Speech, Monitor modes
-
Bluetooth (TWS Support) – Wireless audio streaming from phone or laptop
-
Multiple Inputs (XLR/Jack + AUX) – Connect mic, mixer, or playback devices easily
-
Lightweight & Portable (12.5kg) – Easy to carry for gigs and church use
-
Dual Pole Mount + Flying Points – Flexible installation options
Specifications
-
Type: 2-way coaxial active speaker
-
LF Driver: 10” woofer (50mm VC)
-
HF Driver: 1” compression driver (34mm VC)
-
Power Output:
- RMS: 350W (300W LF + 50W HF)
- Peak: 1400W
-
Frequency Response: 55Hz – 20kHz
-
Max SPL: 124 dB
-
Coverage: 80° x 80°
-
DSP: 24-bit with EQ, delay, limiter
-

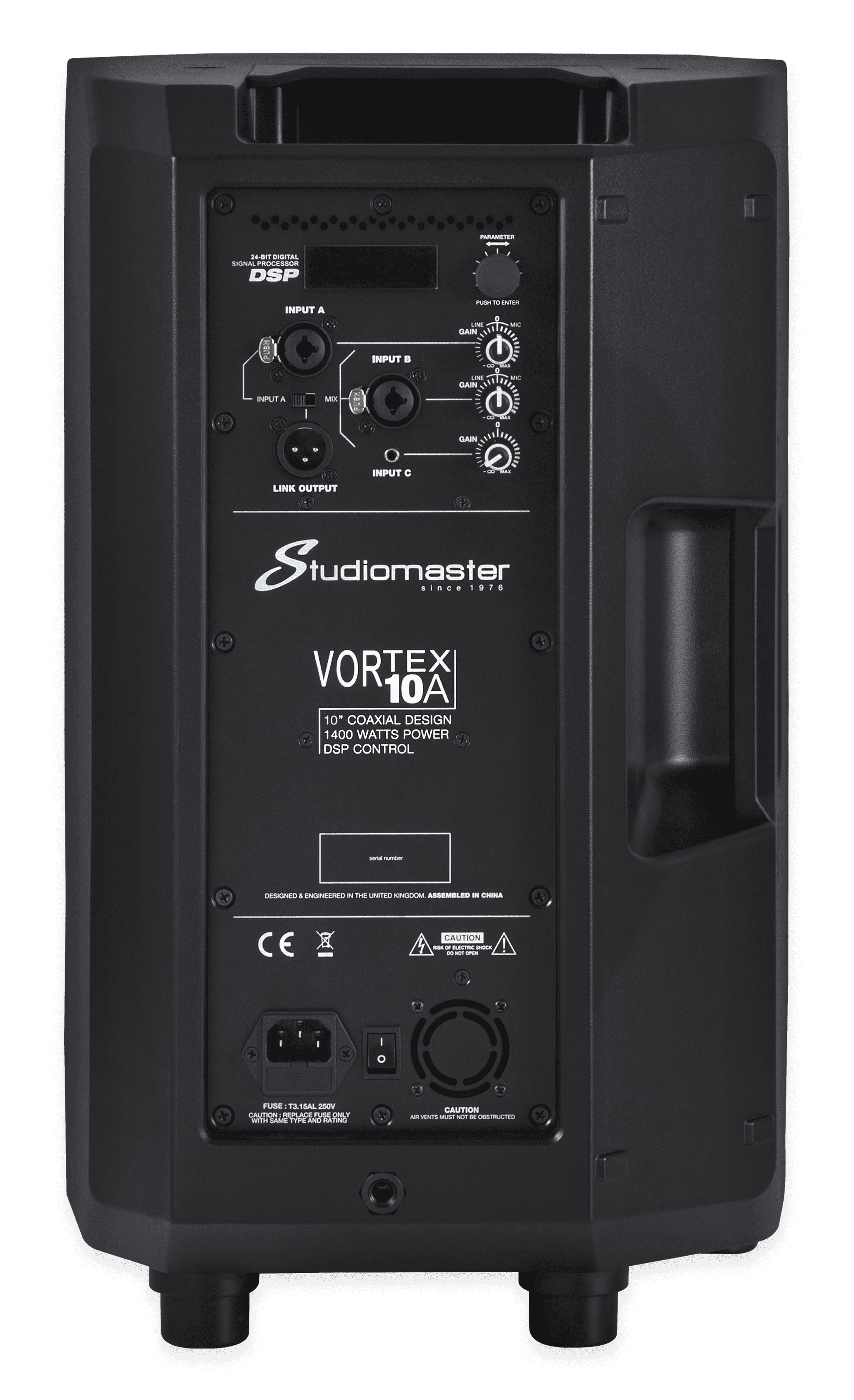

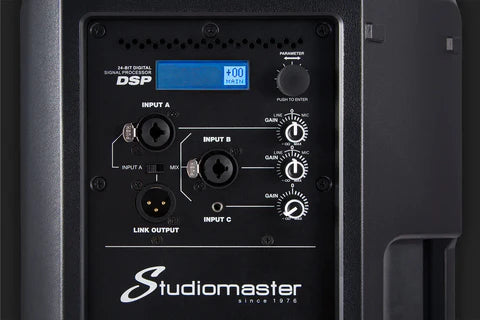

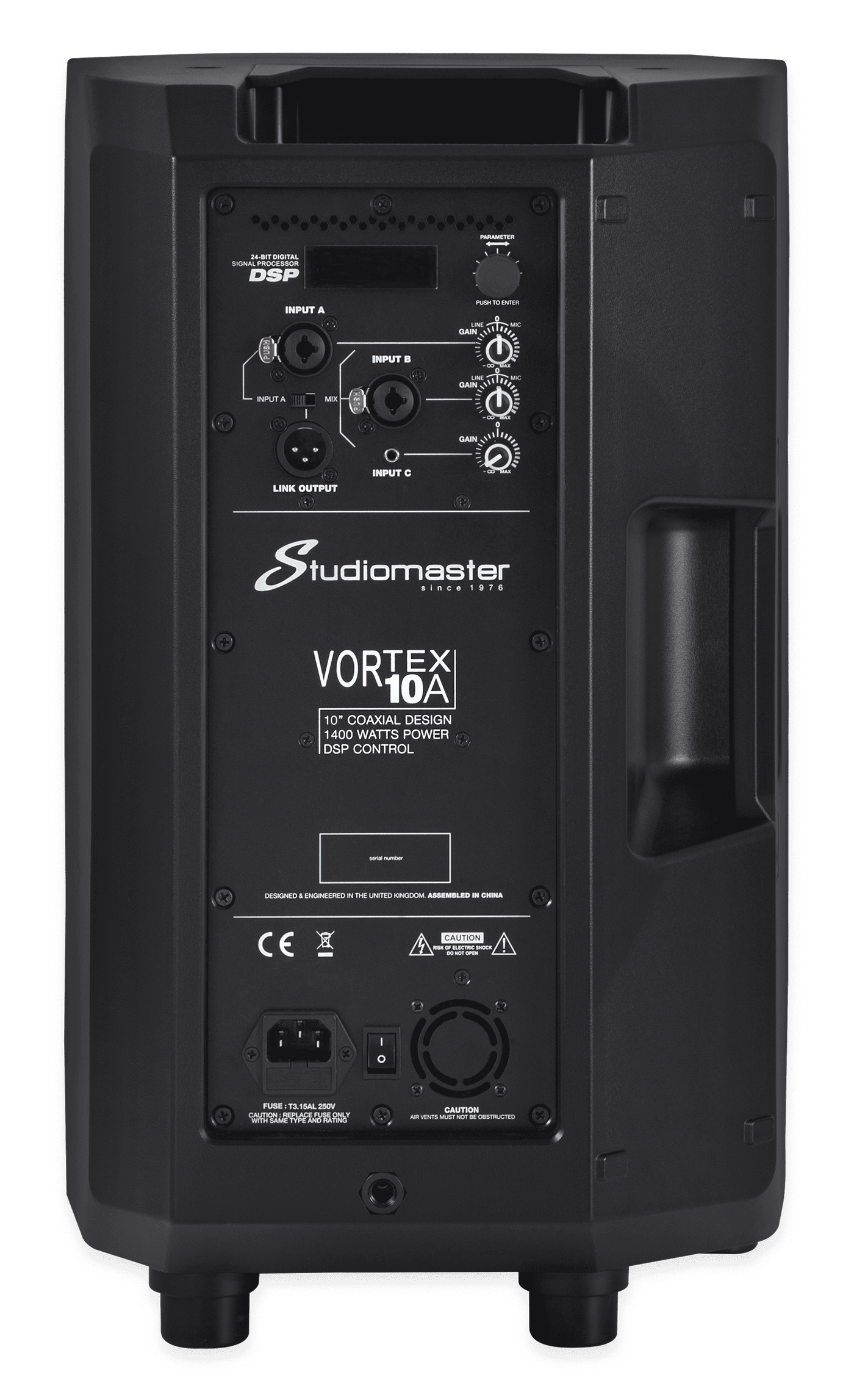

Inputs: 2 x XLR/Jack + 3.5mm AUX
-
Outputs: XLR link out
-
Dimensions: 310 × 515 × 280 mm
-
Weight: 12.5 kg
Best For
- Acoustic worship setups
- Small events & gatherings
- Personal PA / practice system
