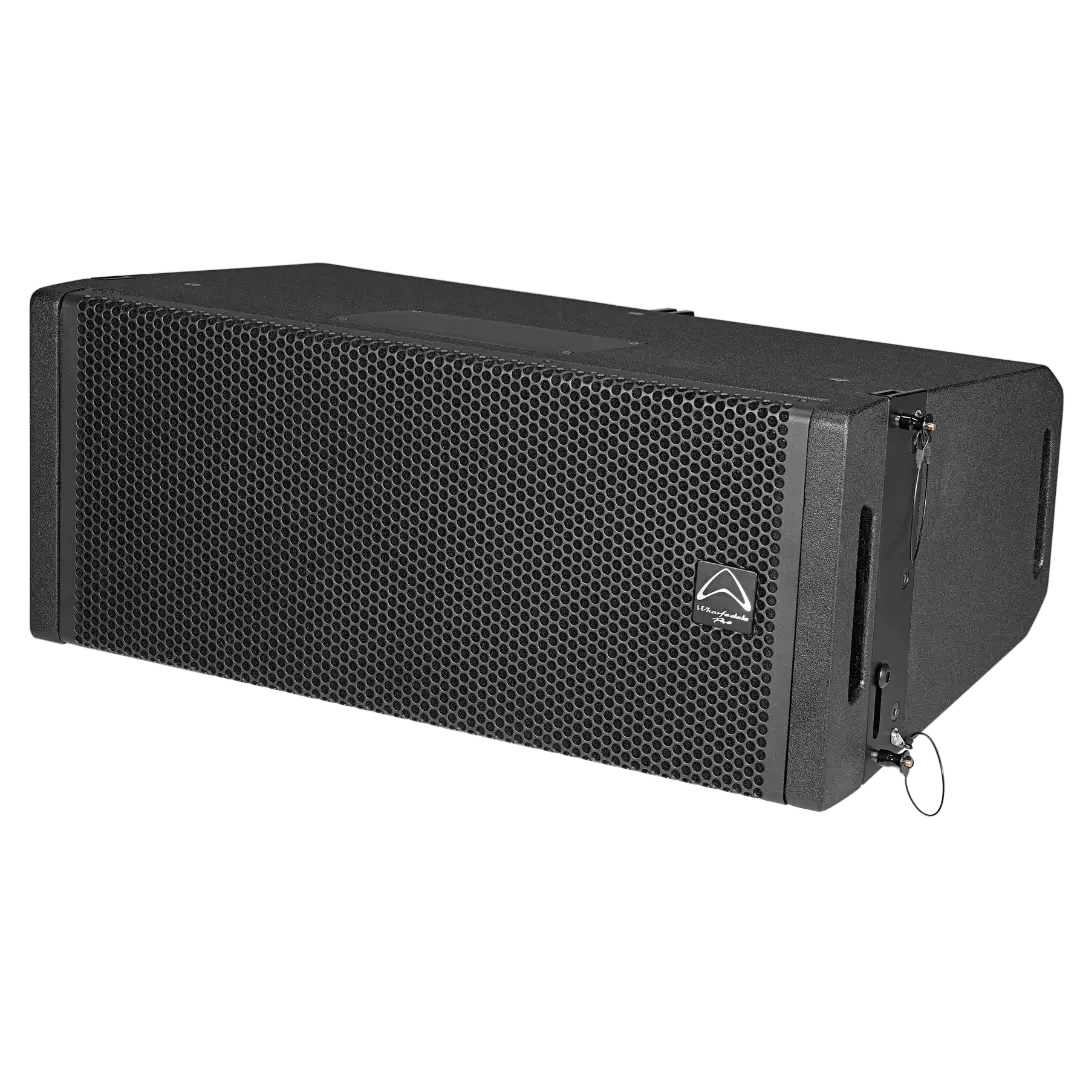

Wharfedale WLA-210A | Dual 10" Active Line Array Element with EVO-Fold Technology
The Wharfedale WLA-210A is a dual 10-inch active line array element featuring EVO-Fold waveguide technology, engineered for exceptional clarity, coverage, and power efficiency. Designed for touring, rental, and installation environments, the WLA-210A delivers 133 dB Max SPL, powerful output, and stunning vocal definition from a compact enclosure.
Built with premium birch plywood, a Class D amplifier, and a high-efficiency switching power supply, the WLA-210A ensures long-term durability and dependable performance in any professional setting.
With 8 FIR DSP presets, including factory-tuned configurations for a variety of venues and system setups, this line array provides maximum control and precision right out of the box.
Why Buy from Hymns Music Nepal
Hymns Music Nepal is Nepal’s trusted Shop of Wharfedale professional audio equipment.
We provide authentic products, competitive pricing, and outstanding customer service, ensuring your investment performs reliably in every application — from live events to permanent installations.
Key Features
-
Dual 10″ Active Line Array Element
-

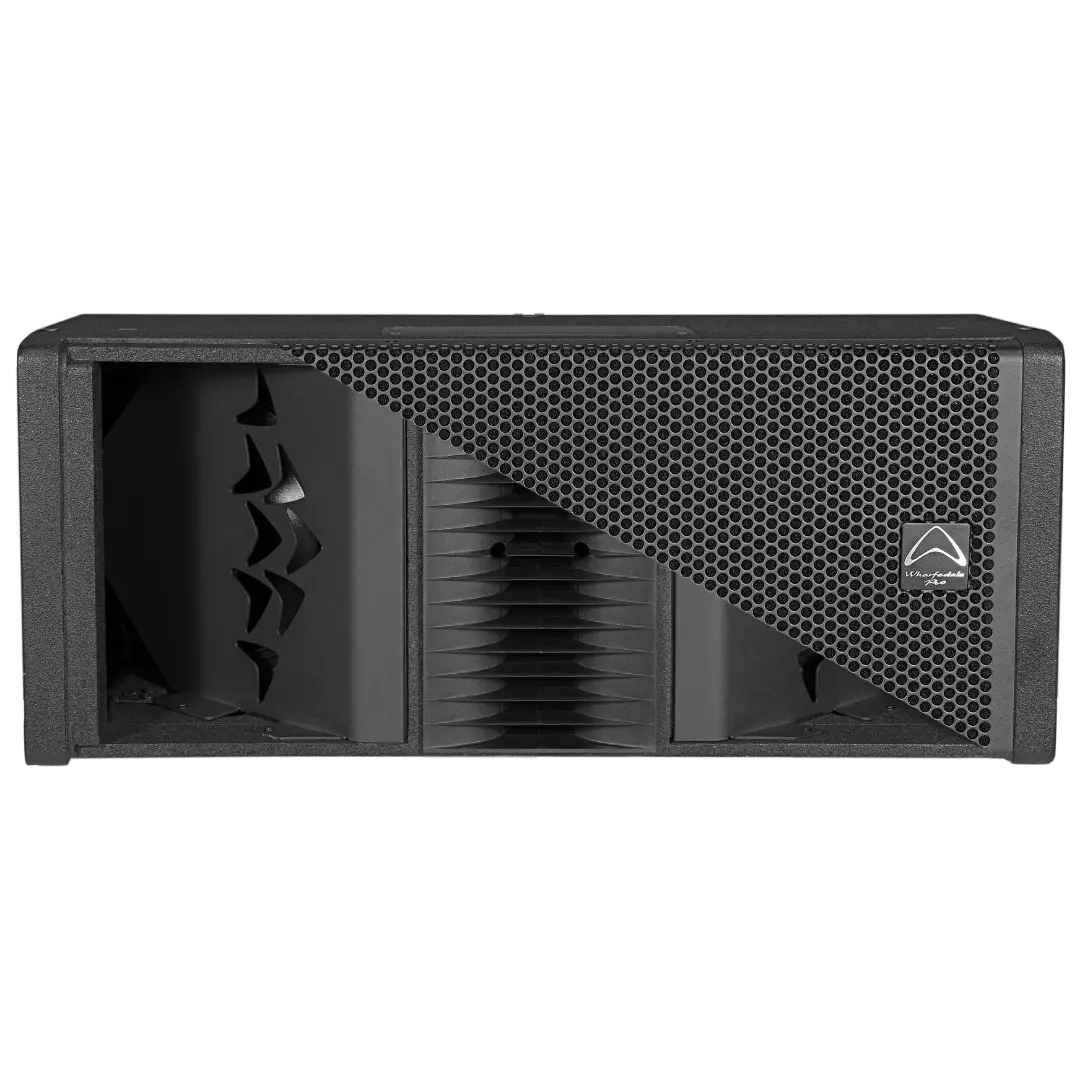

EVO-Fold Waveguide Technology — precise 100° × 10° dispersion
-
Max SPL: 133 dB @ 1 meter
-
Amplifier Power:
-
Amplifier Design: Class D
-
DSP System: 8 FIR presets with advanced protection & EQ
-
Crossover Frequency: 1.5 kHz
-

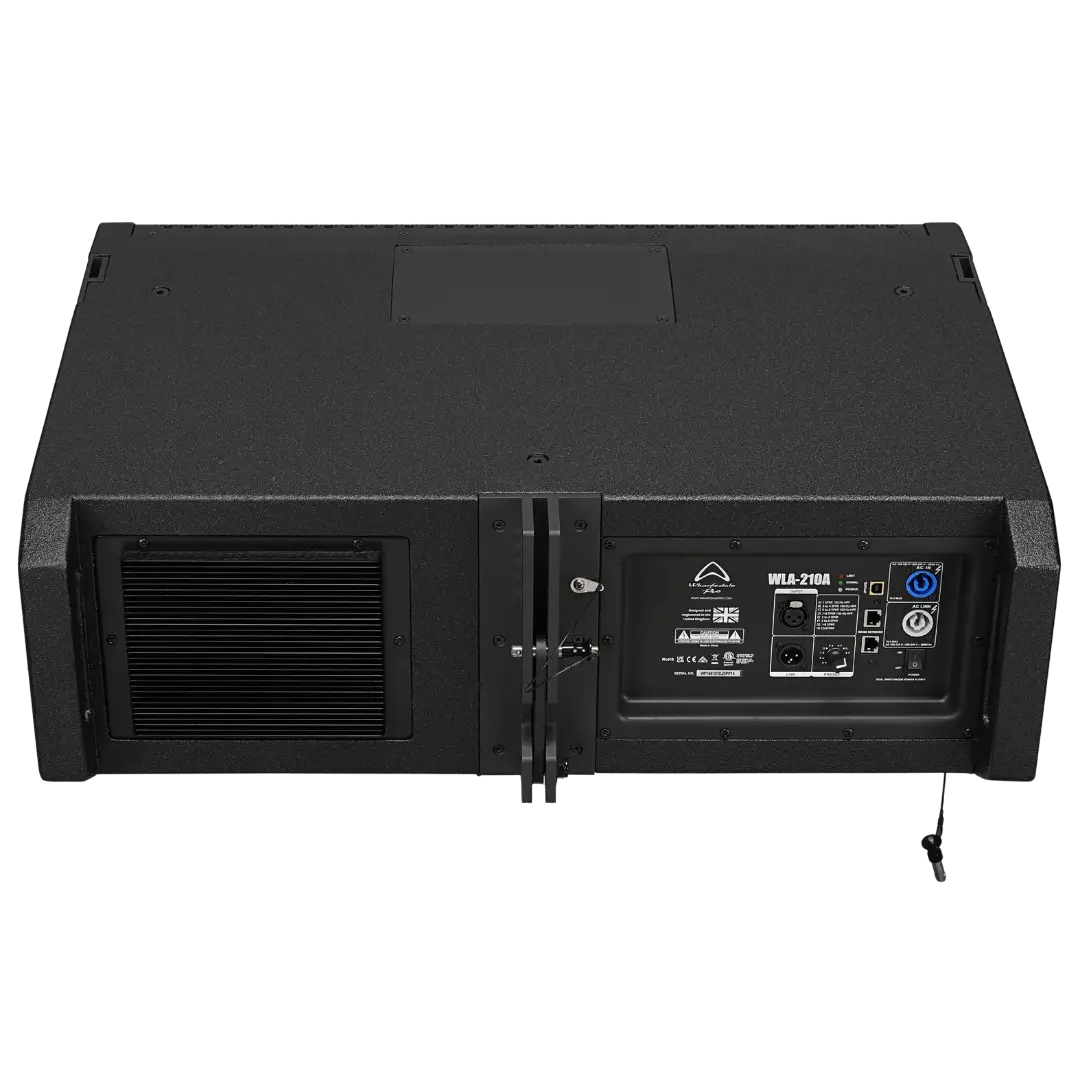

Network Control: RS485 (RJ45) + USB (Type-B)
-
AC Input: powerCON connectors (loop-through supported)
-
Enclosure: 15/18 mm Birch plywood with black Tough-Tone finish
-

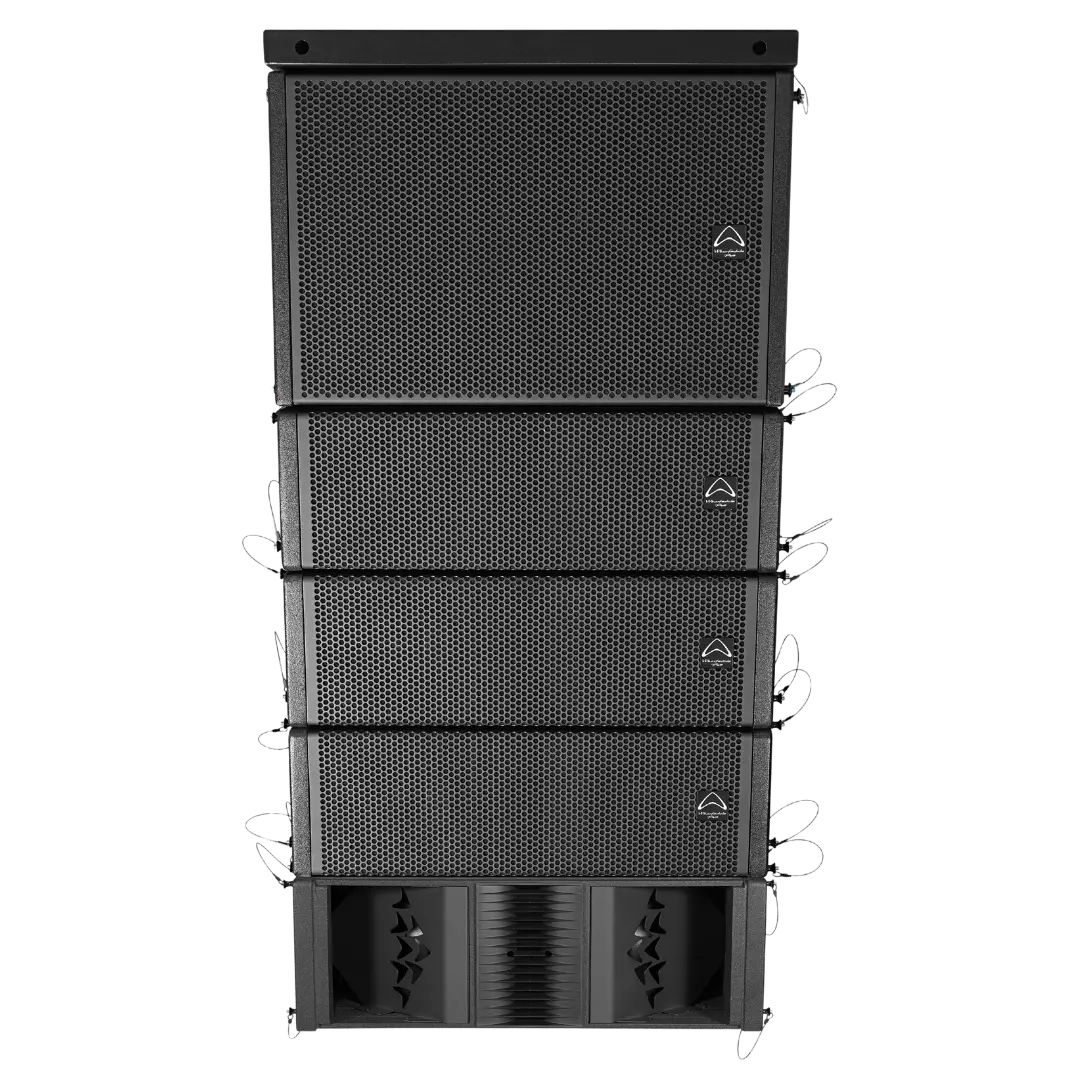

Rigging: 3-point integral rigging for flying or ground stacking
-
Protection: RMS/Peak limiters, DC, short, and thermal protection
-
LED Indicators: Power (White), Signal (Green), Limiter (Red), Find (Blue)
-
Weight: 39.5 kg
Technical Specifications
| Specification |
Value |
| Type |
Active 2-way Line Array Element |
| LF Drivers |
2 × 10" Ferrite (2.5” VC, Aluminum frame) |
| HF Driver |
3” Titanium compression driver (1.4” exit) |
| Max SPL @ 1m |
133 dB |
| Frequency Response (+/-3dB) |
55 Hz – 20 kHz |
| Coverage (H × V) |
100° × 10° |
| Crossover Frequency |
1.5 kHz |
| Input / Link |
Balanced XLR (input + link) |
| Input Sensitivity |
+4 dBu |
| Power Supply |
100–240V AC, 50/60Hz (auto-sensing) |
| Construction |
15 mm / 18 mm Birch plywood |
| Finish |
Black Tough-Tone |
| Rigging Points |
3 |
| Dimensions (W × D × H) |
760 × 503 × 314 mm (front height) |
| Weight (Net) |
39.5 kg |
Exceptional Sound Quality
The Wharfedale WLA-210A Active Line Array delivers outstanding audio performance, making it ideal for concerts and events. Its high-efficiency drivers ensure clear sound reproduction across a wide frequency range, which enhances the listening experience. Additionally, the array design allows for optimal sound dispersion, so that every audience member receives consistent audio quality.
Versatile Setup Options
One of the key advantages of the Wharfedale WLA-210A is its flexible setup options. You can easily configure it for various types of venues, whether it's a small indoor space or a large outdoor concert. The speaker system can be used on its own or combined with other units, which provides scalability for any event size because you can tailor the system to meet the specific needs of your audience.
User-Friendly Features
The Wharfedale WLA-210A is designed with usability in mind, making it accessible for both professionals and beginners. It features built-in amplification and an integrated DSP (Digital Signal Processing) that simplifies the setup process. This way, you can focus on the event instead of technical adjustments, ensuring that the sound is optimized without requiring excessive effort.
