Wharfedale WLA-312X | 3-Way Dual 12" Professional Line Array Element (142 dB SPL)
The Wharfedale WLA-312X is a three-way line array element designed for large-scale touring and installation systems that demand power, precision, and reliability.
With a sophisticated acoustic design and a total power handling of 1410W RMS (2820W program, 5640W peak), the WLA-312X delivers stunning clarity and massive SPL output in any professional setting.

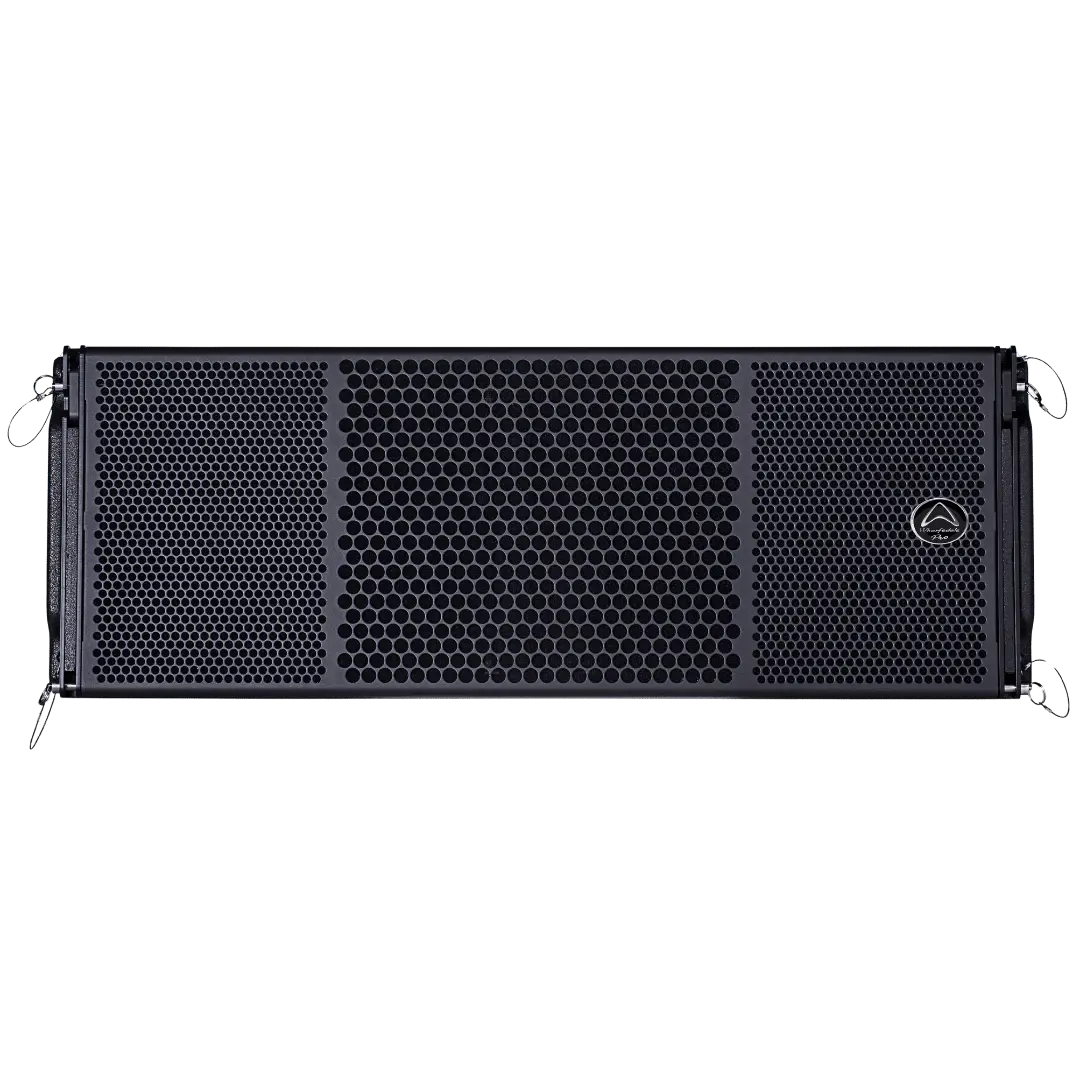

This system combines two 12″ ferrite low-frequency drivers, a 10″ neodymium midrange driver, and dual 2.55″ neodymium compression drivers, providing a smooth, detailed frequency response from 50 Hz to 18 kHz with a maximum SPL of 142 dB.
Crafted from premium birch plywood with a black Tough-Tone finish, the WLA-312X is rugged yet acoustically precise — ideal for touring, live concerts, and fixed installations.
Design & Performance
The WLA-312X features constant directivity waveguides for uniform coverage (90° × 7.5°) and phase-coherent sound projection. Its trapezoidal enclosure enhances array curvature while minimizing comb filtering.

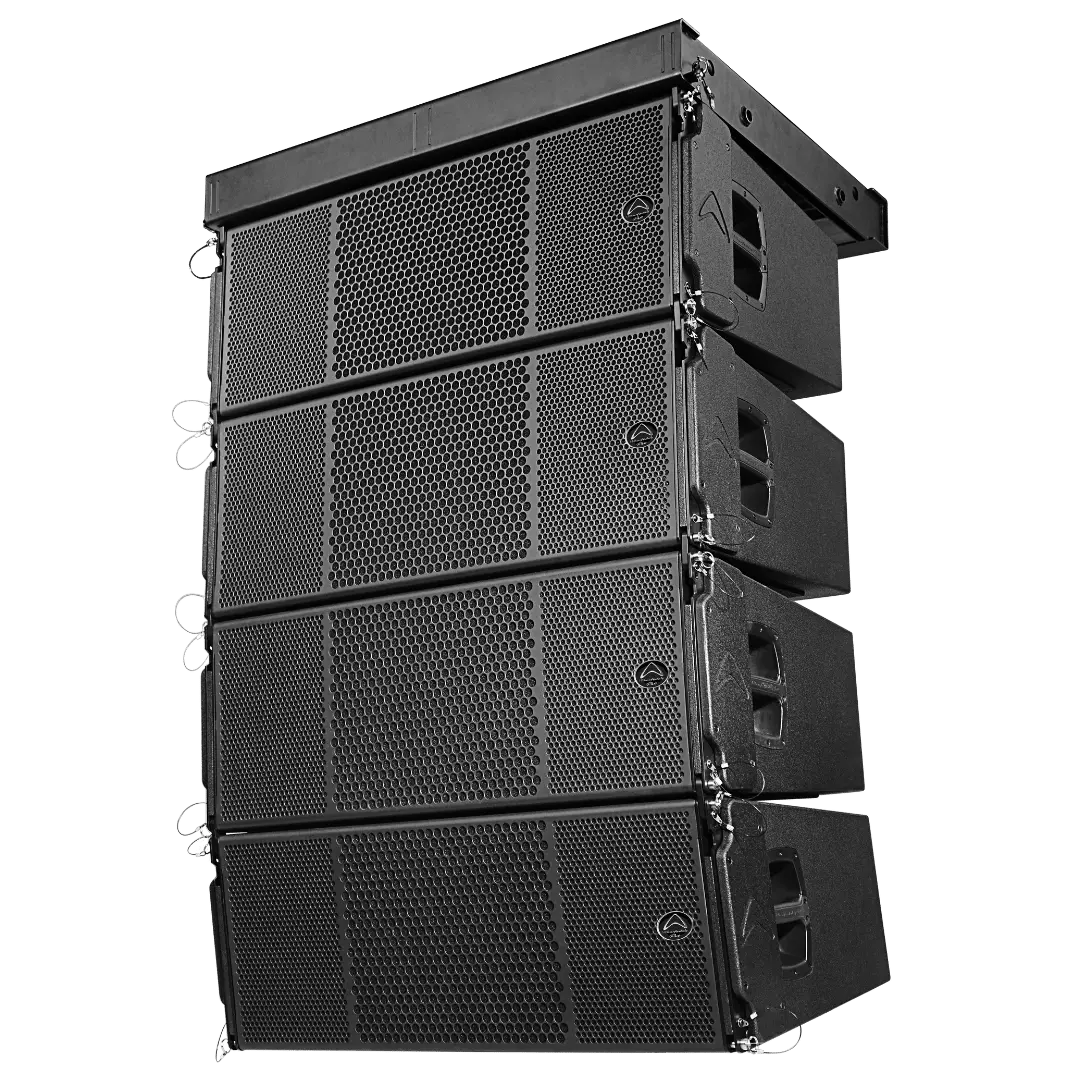

With 3-point integral rigging and a dedicated fly frame (supporting up to 12 elements / 900 kg), deployment is fast, safe, and flexible — whether flown or ground-stacked.
Every detail of the WLA-312X is engineered for long-term reliability, precision audio, and ease of setup.
Key Features
-
3-Way Line Array Element — high-output, precision design
-
Power Handling:
-
LF: 900W RMS / 1800W program / 3600W peak
-
MF: 350W RMS / 700W program / 1400W peak
-
HF: 160W RMS / 320W program / 640W peak
-
Total System Power: 1410W RMS / 2820W Program / 5640W Peak
-
Frequency Response: 50 Hz – 18 kHz (±3 dB)
-
Max SPL: 142 dB @ 1m
-
Crossover Frequencies: 160 Hz / 1.2 kHz
-
Coverage Pattern: 90° (H) × 7.5° (V)
-

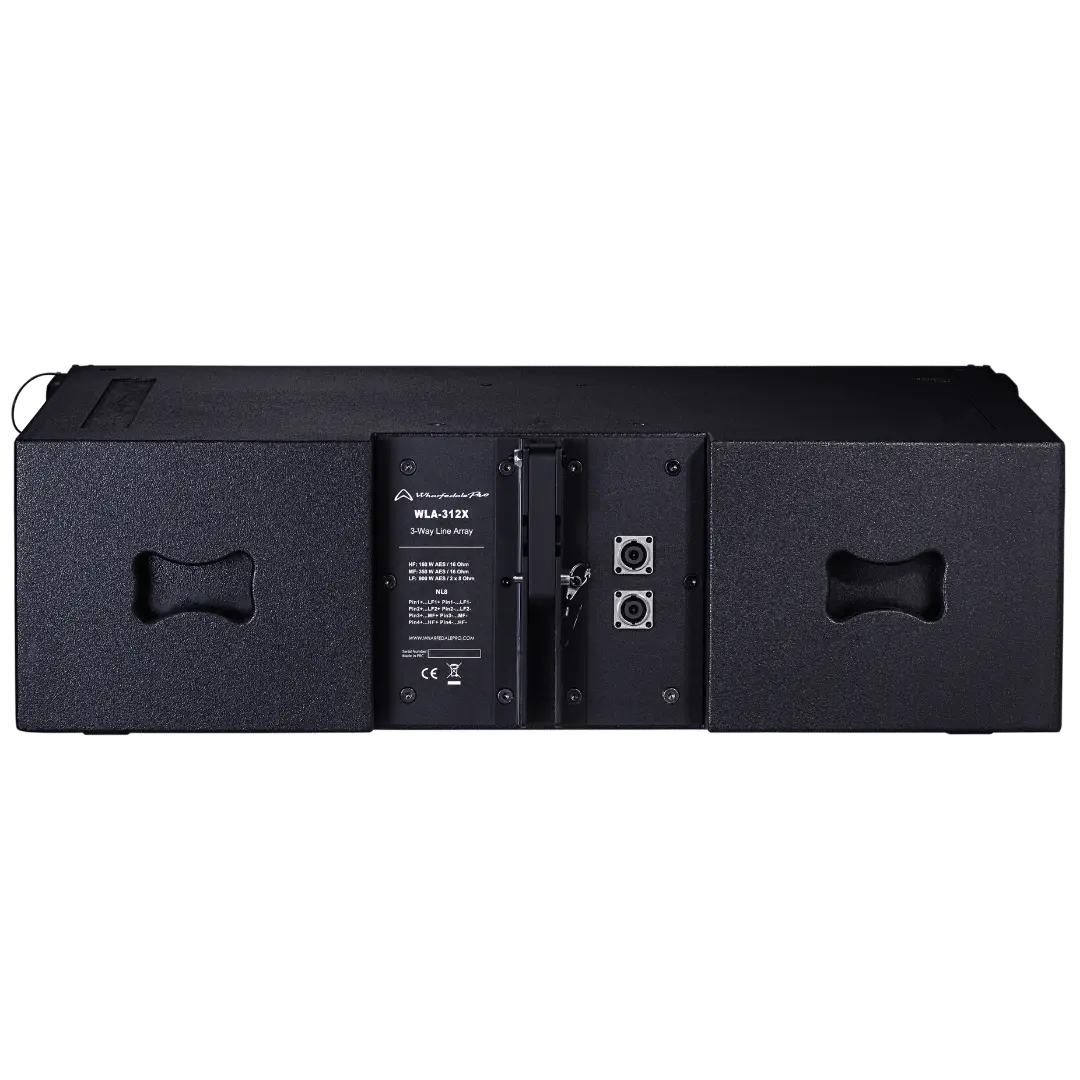

Connectors: 2 × 4-pole Speakon-compatible speaker connectors
-
Cabinet: Birch plywood with black Tough-Tone finish
-
Waveguide Type: Constant directivity
-
Rigging: Integral 3-point system (supports up to 12 elements)
-
Weight: 58 kg
Applications
-
Touring and concert sound systems
-
Large-scale installations
-
Stadiums, arenas, and auditoriums
-
Houses of worship
-
Live festivals and outdoor events
Why Buy from Hymns Music Nepal
At Hymns Music Nepal, we’re proud to offer authentic Wharfedale Pro audio equipment with competitive pricing and professional support.
We provide gear trusted by sound engineers and event professionals across Nepal — ensuring reliability and world-class performance for every project.
Exceptional Sound Quality
The Wharfedale WLA-312X is a passive line array speaker designed for optimal audio performance. It delivers clear and powerful sound, making it perfect for concerts, events, or installations. Additionally, its innovative design allows for precise sound dispersion, which enhances the listening experience across a wide audience. This means that whether you're at the front or back of a venue, you'll enjoy consistent sound quality.
Versatile Applications
This speaker is not just about sound; it's also highly versatile. The WLA-312X can be used in different settings, such as theaters, conferences, or live music events. It can be easily integrated into existing audio systems, and because it's passive, it allows for customization in amplification. Therefore, users can adapt it to fit their specific sound needs, making it an excellent choice for various applications.
Durable and Reliable
Durability is another key feature of the Wharfedale WLA-312X. It's constructed with high-quality materials that not only enhance performance but also ensure it can withstand the rigors of live events. This means you can rely on it to perform consistently, whether it’s a one-off gig or a series of concerts. As a result, investing in the WLA-312X is a decision based on both quality and reliability.
