The Allen & Heath AB-168 Stage Box is a rugged, portable 48kHz remote AudioRack designed for seamless integration with Allen & Heath Qu, SQ, and GLD mixers. Ideal for live sound, installations, houses of worship, touring acts, and production companies, this stage box expands your system’s I/O while delivering pristine audio over long distances.

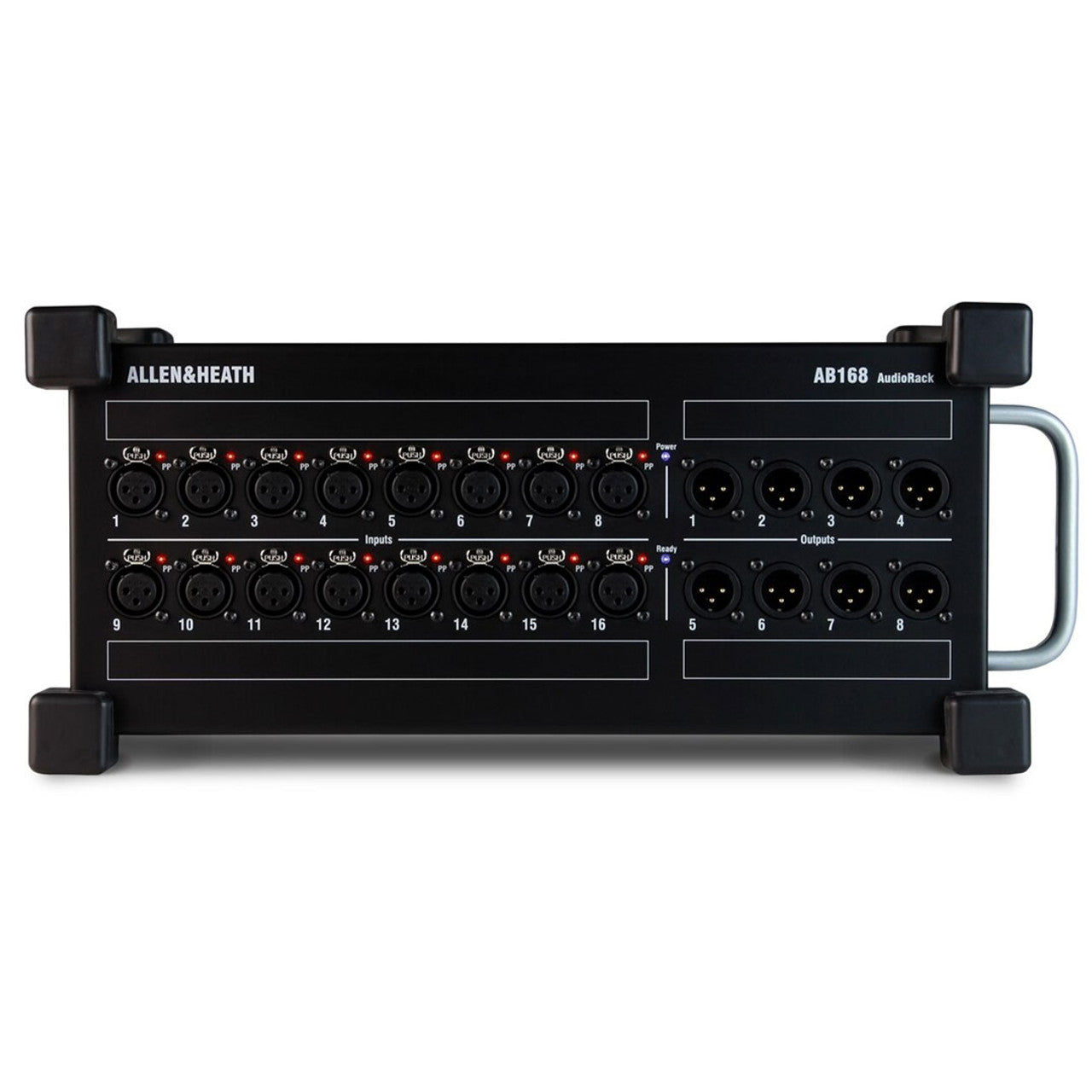

With 16 high-quality recallable mic preamps (each with Phantom Power indicators) and 8 balanced XLR line outputs, the AB-168 brings all your stage inputs and monitor outputs closer to the action — reducing cable clutter, improving signal quality, and simplifying setup.

Powered by Allen & Heath’s robust dSNAKE protocol, the AB-168 connects via a single Cat5e/Cat6 cable up to 100m, ensuring reliable low-latency audio transmission. A second EtherCon port allows daisy-chaining another AB-168 or connecting a ME personal monitoring system.

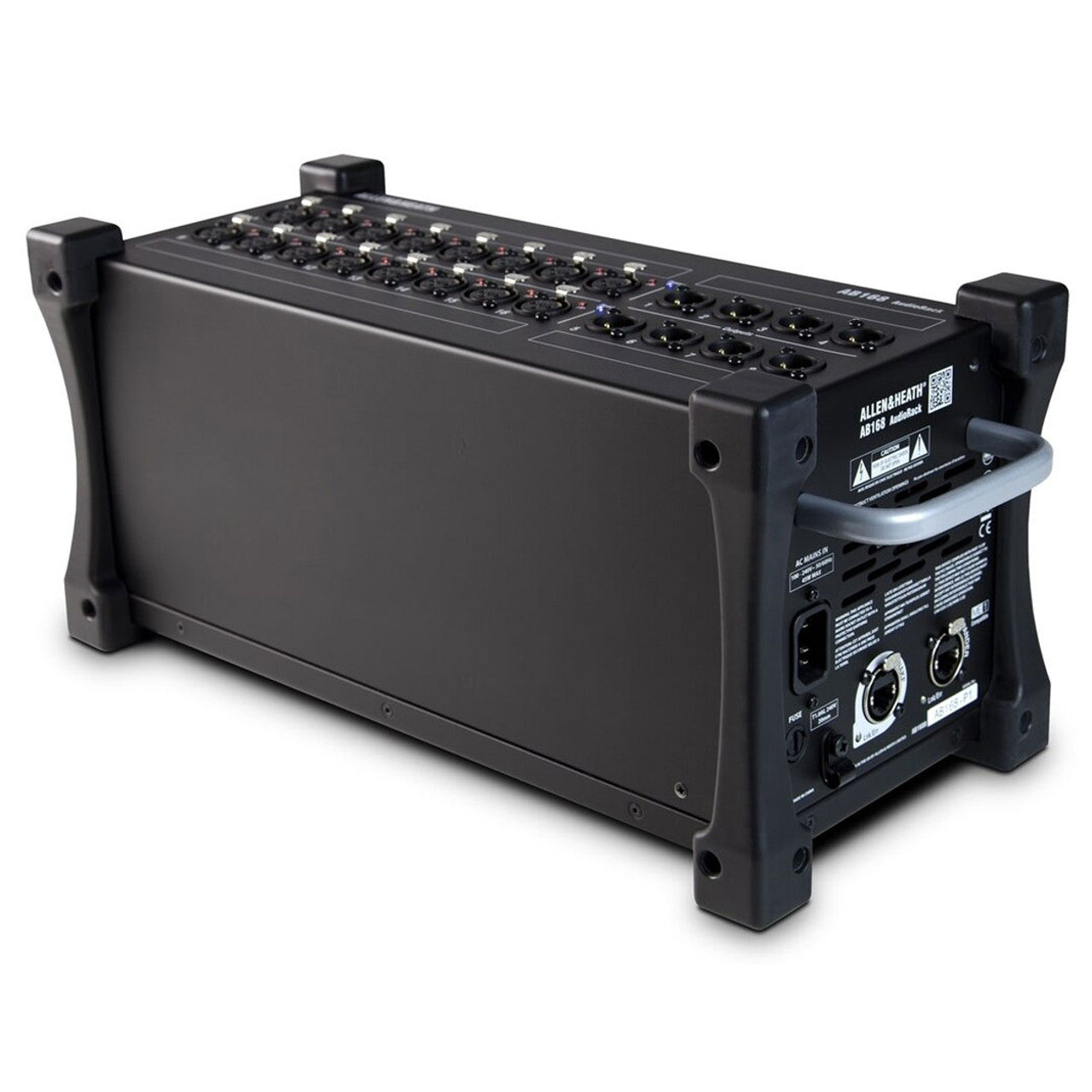

Built for the road, its rubber bumpers, reinforced housing, and 4.8kg lightweight construction make it stage-tough and highly portable. A rackmount kit is available for fixed installations.

 Key Features

• 48kHz portable remote AudioRack

• 16 recallable mic/line preamps with Phantom Power indicators

• 8 balanced XLR line outputs

• dSNAKE connection for Qu, GLD & SQ mixers

• Secondary EtherCon port for daisy-chain or ME personal mixers

• Supports Cat5e/Cat6 cables up to 100m

• Rugged design with rubber bumpers

• Lightweight (4.8kg) with integrated carry handle

• Optional rackmount kit (AB-168RK-10)

 Specifications

Inputs

• 16 × XLR mic/line inputs (balanced, fully recallable)

• Sensitivity: –60 to +15 dBu

• Analogue gain: +5 to +60 dB in 1 dB steps

• Pad: –20 dB

• Max input level: +32 dBu

• Input impedance: >4kΩ (Pad Out), >10kΩ (Pad In)

• EIN: –127 dB (150Ω source)

• THD+N: as low as 0.003% depending on gain stage

Outputs

• 8 × XLR balanced, relay-protected

• Nominal output: +4 dBu

• Max output level: +22 dBu

• Output impedance: <75Ω

• Residual noise: –91 dBu

General

• Operating Temperature: 0° to 35°C

• Power: 100–240V AC, 50/60Hz, 20W max

• Weight: 4.8 kg

 What’s in the Box

• Allen & Heath AB-168 Stage Box

• Power Cable

• User Guide

• 1-Year Warranty

Why Buy From Hymns Music Nepal

Hymns Music Nepal is one of the country’s most trusted destinations for musicians, audio engineers, and performers. You get 100% genuine products, authorized dealer pricing, and reliable after-sales support. Whether you're building a studio, expanding your live sound rig, or upgrading your gear, we ensure you get the right equipment with service that truly cares about your sound.

Upgrade your stage connectivity—order the Allen & Heath AB-168 Stage Box today!
