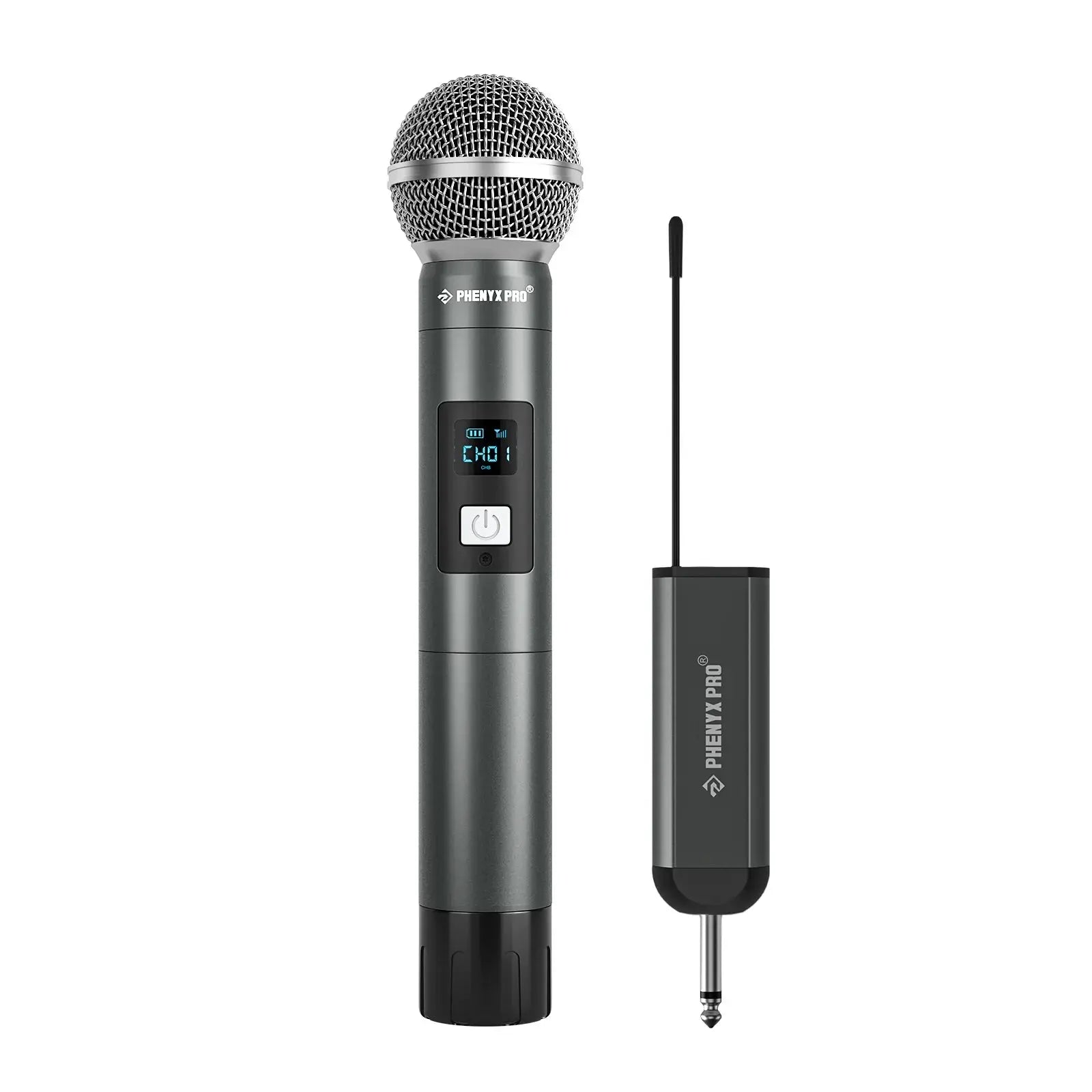

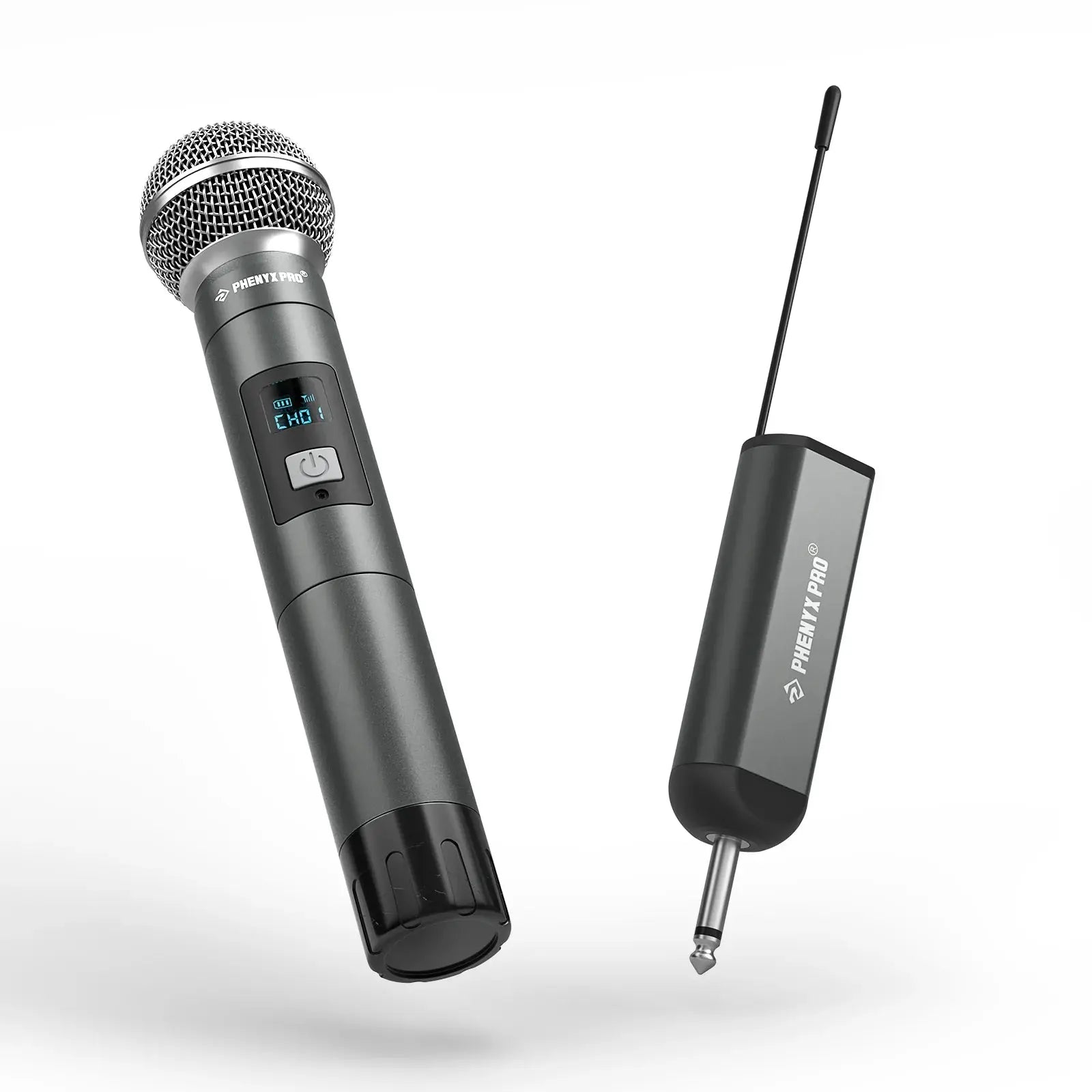

Phenyx Pro PDP-1-1H | Single Digital Portable Wireless Microphone System
The Phenyx Pro PDP-1-1H is a next-generation digital wireless microphone system designed for clear, accurate, and interference-free sound. Built with 48kHz/24-bit high-resolution digital circuitry, it delivers a pure, distortion-free audio experience ideal for church services, karaoke, DJ events, weddings, meetings, and broadcasts.
Operating in the tunable 800/900MHz UHF range, the PDP-1-1H avoids crowded frequency bands (500MHz and 2.4GHz) to ensure stable connectivity. With its portable receiver, cardioid dynamic handheld microphone, and USB-C fast charging, this all-in-one system brings professional audio to any stage — effortlessly.
Feature Highlights
Pristine Digital Audio
-
48 kHz / 24-bit high-resolution sampling rate
-
Delivers accurate, pure sound with negligible distortion
-
Only 2.5ms latency for real-time performance
Stable UHF Frequency Performance
-
Operates in the 800MHz or 900MHz UHF band
-
Avoids interference from common Wi-Fi and Bluetooth devices
-
15 frequency groups (900MHz) or 5 groups (800MHz) for multi-system setup
-
Up to 200ft (60m) line-of-sight operating range
Versatile Microphone Options
-
Cardioid dynamic handheld microphone for clear vocal pickup
-
Optional bodypack transmitter with headset/lapel mic
-
3-pin mini XLR connection for high-quality transmission
-
Transmitter mute function for smooth performance control
Portable and Rechargeable
-
Receiver: 1500mAh battery (up to 12 hours runtime)
-
Transmitter: 550mAh battery (up to 5.5 hours runtime)
-
USB-C charging for both receiver and transmitter
-
Quick 2-hour charging time
User-Friendly Operation
-
Plug-and-play setup with one-tap frequency pairing
-
Easy-to-read LED indicators
-
Compact, elegant portable design
-
Ideal for mobile events, small venues, and outdoor gatherings
| Component |
Details |
| System Type |
Digital Wireless Microphone System |
| Frequency Band |
Tunable 800MHz / 900MHz UHF |
| Sampling Rate |
48kHz |
| Bit Depth |
24-bit |
| Latency |
2.5ms |
| Operating Range |
160 – 200ft (line-of-sight) |
|
|

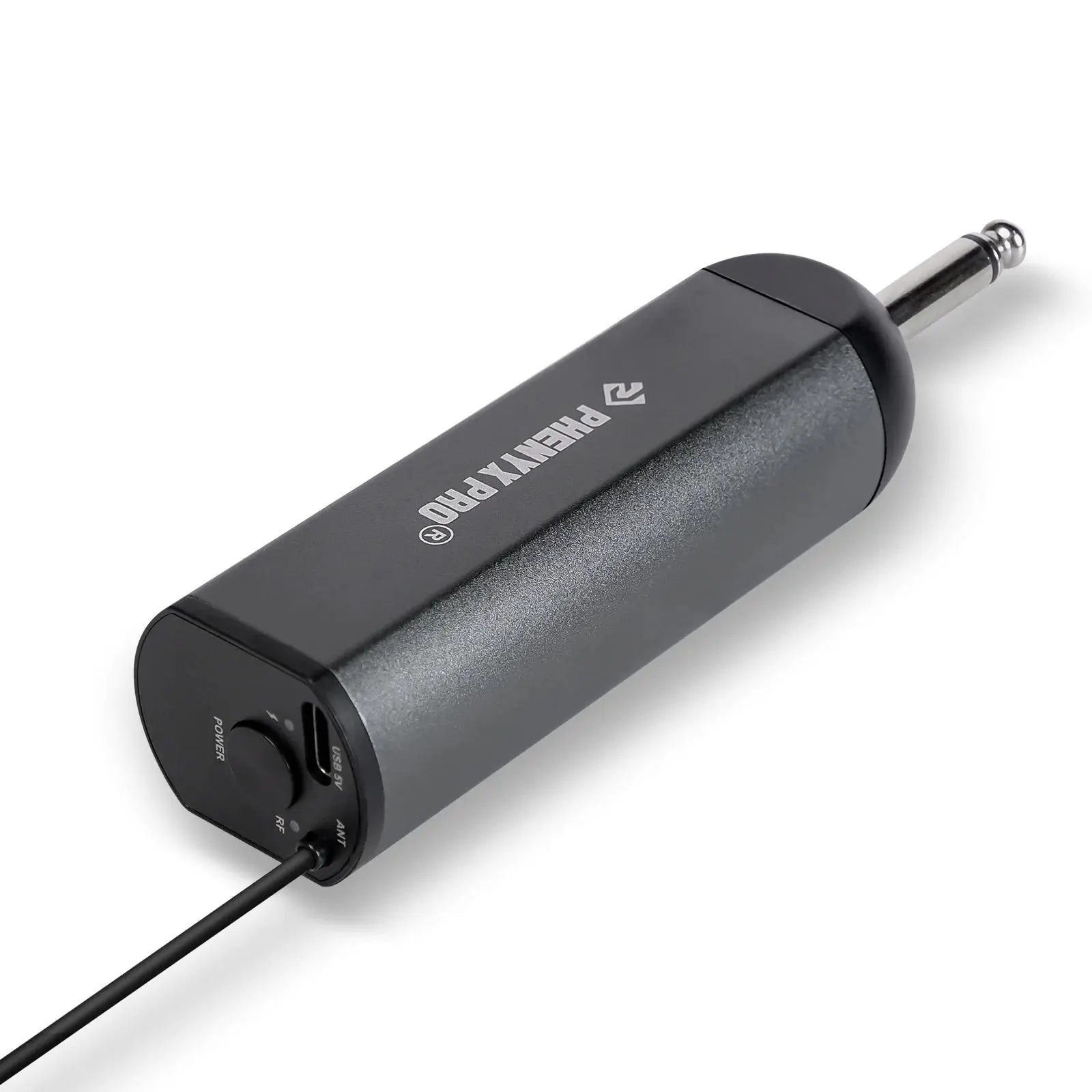

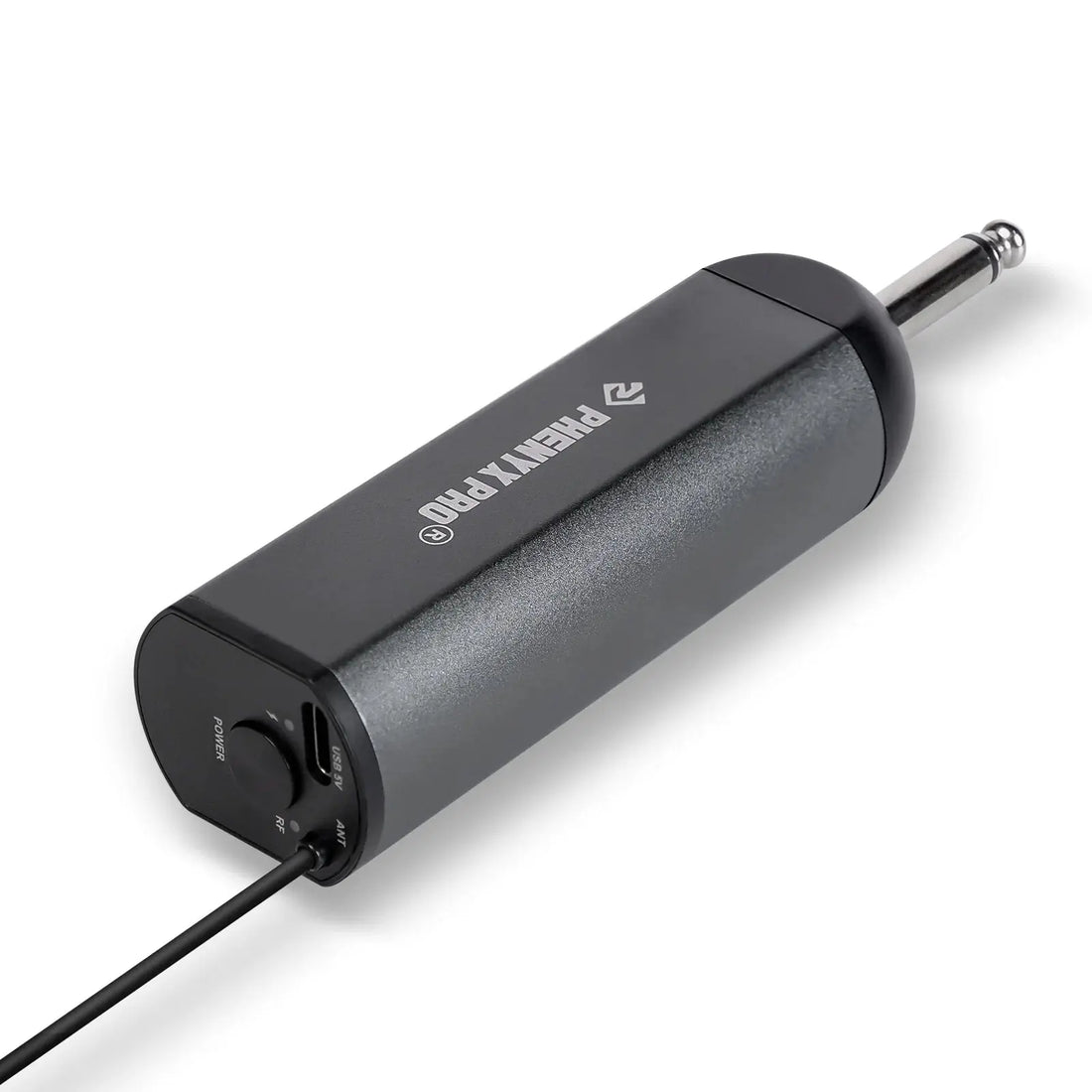

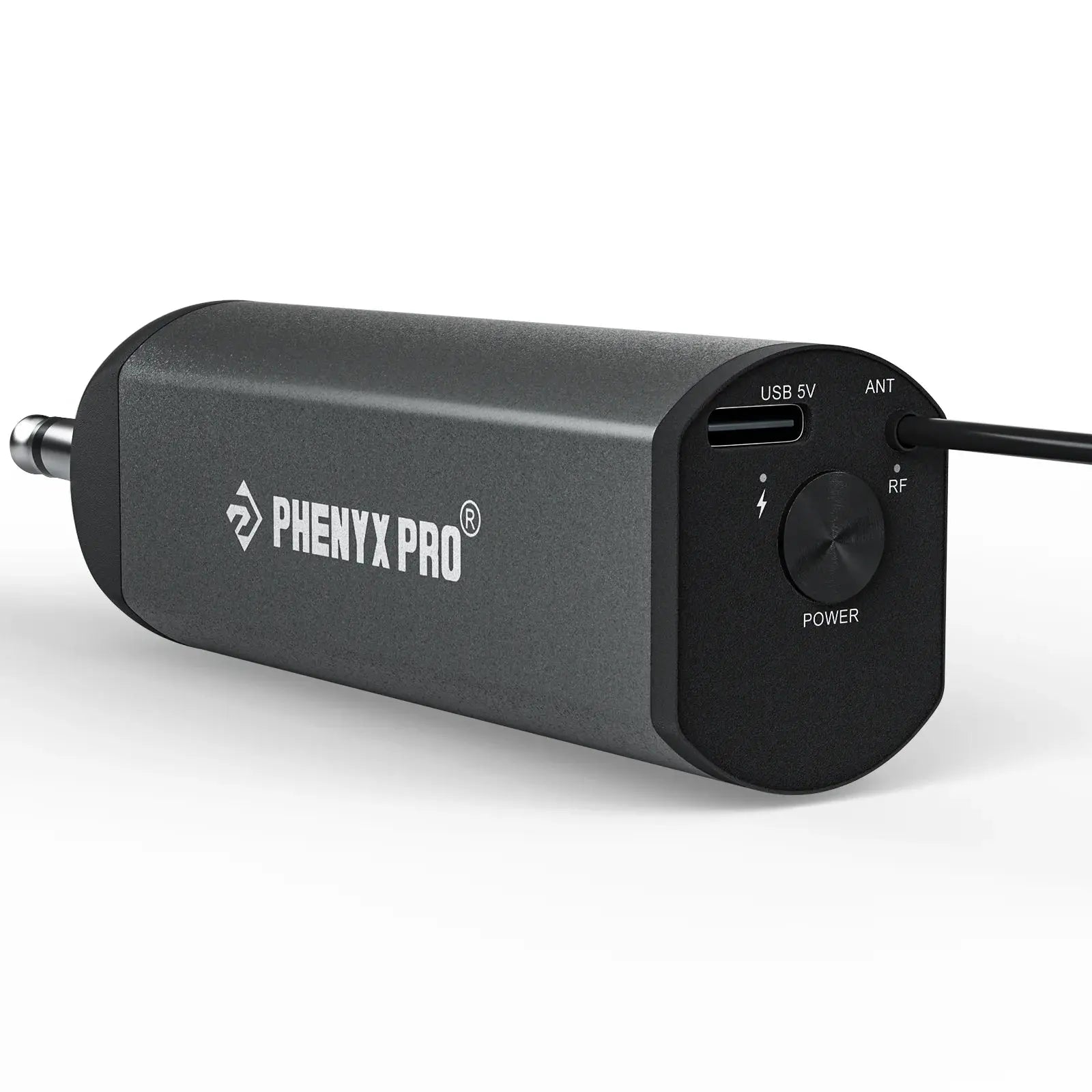

Receiver (PWR-P1/2)
|
|
|
Operating Temp
|
0°C to +55°C |
| Battery |
1500mAh Rechargeable |
| Output |
1/4" TS Male |
| Charging |
USB-C |
| Power Supply |
DC 5V / 500mA |
|
|
Bodypack Transmitter (PWB-P)
|
|
| Mic Type |
Condenser (Headset/Lapel) |
| Polar Pattern |
Omni |
| Frequency Response |
110Hz – 18kHz |
| Sensitivity |
-36dB (headset) / -30dB (lapel) |
| S/N Ratio |
96dB |
| Charging Time |
2h |
| Working Time |
5.5h |
|
|

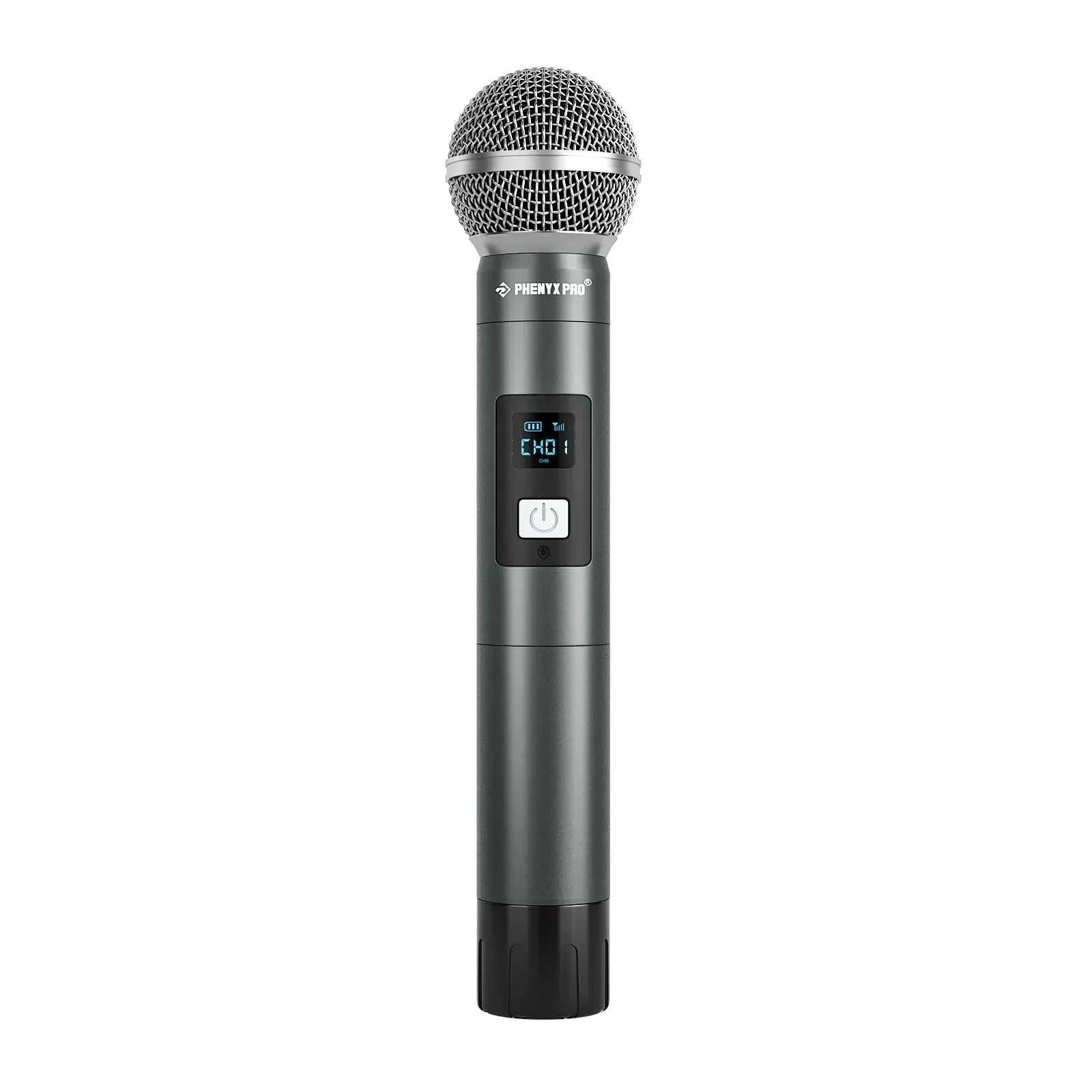

Handheld Transmitter (PWH-P)
|
|
| Mic Type |
Dynamic |
| Polar Pattern |
Cardioid |
| Frequency Response |
50Hz – 16kHz |
| S/N Ratio |
96dB |
| Output Impedance |
600Ω |
| THD+N |
0.05% |
| Sample Rate |
48kHz / 24-bit |
Exceptional Sound Quality
The Phenyx Pro PDP-1-1H delivers crystal-clear audio with enhanced sound fidelity. It utilizes advanced digital technology, which ensures minimal interference and dropouts. As a result, you can speak or sing without worrying about audio lag or distortion. The clarity of this system makes it ideal for a variety of settings, from professional performances to casual gatherings, ensuring that your voice is heard loud and clear.
Portable Design
This wireless microphone system is designed for portability. The Phenyx Pro PDP-1-1H is lightweight and compact, which means it's easy to take with you wherever you go. Whether you're hosting an outdoor event or giving a speech at a conference, its sleek design allows for effortless transportation. So, you can set up quickly and efficiently, without heavy equipment weighing you down.
User-Friendly Operation
Designed with the user in mind, the Phenyx Pro PDP-1-1H features intuitive controls that make setup and operation incredibly simple. It includes plug-and-play functionality, allowing you to connect it to your devices within seconds. Users appreciate the strong wireless range and battery life, making it a reliable choice for extended events. Because of its ease of use, anyone can operate this system, no matter their technical expertise.
