Navigate Complex RF Settings for Lossless Audio with a Twist

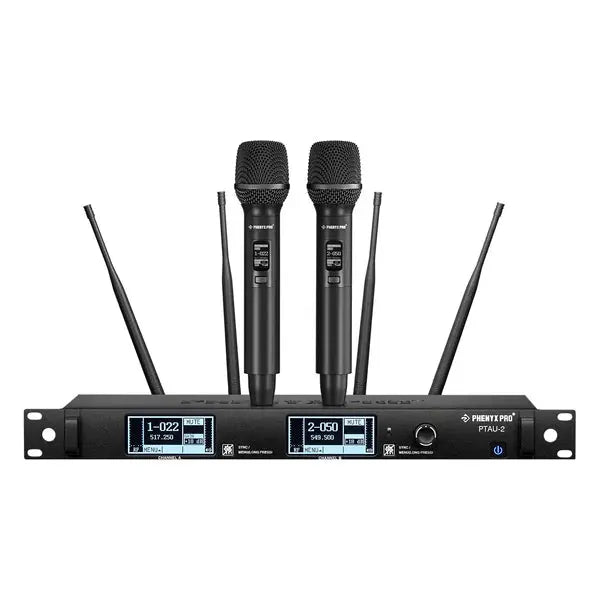

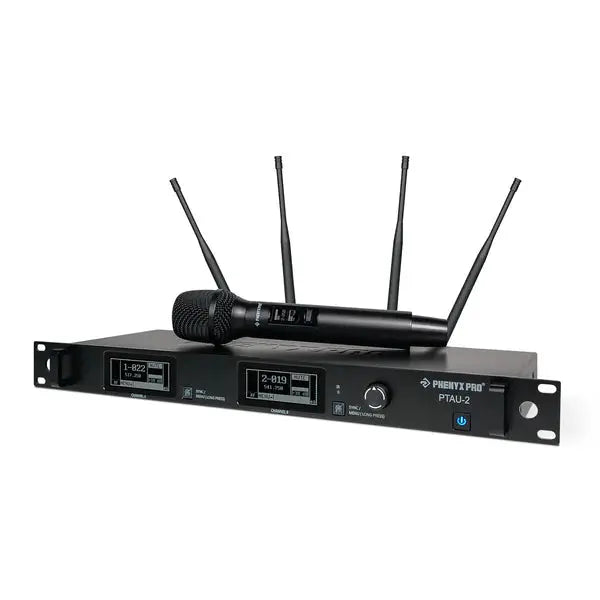

The Phenyx Pro PTAU-2 Dual-Channel Advanced True Diversity Wireless Microphone System is engineered for demanding environments and complex RF conditions. With its innovative shuttle jog dial, the PTAU-2 simplifies navigation by replacing multi-button setups with smooth, intuitive control.
Equipped with true diversity circuitry, ID lock function, and 2 × 1000 selectable frequencies, this system ensures crystal-clear audio, stable transmission, and interference-free performance for professional events, conferences, and live shows. Whether you’re addressing a large crowd, performing with a band, or managing multiple wireless setups, the PTAU-2 guarantees clarity, precision, and reliability.
Key Features
-
Shuttle Jog Dial – Effortlessly control multiple functions with a simple twist for fast, intuitive operation.
-
ID Lock Function – Prevents interference by locking frequencies to matched transmitters only.
-
2 × 1000 selectable frequencies across the UHF 500MHz band for stable connections.
-
Spectrum Analyzer – Maps RF distribution to identify clean frequency bands.
-
Auto-Scan Function – Automatically detects and avoids busy channels.
-

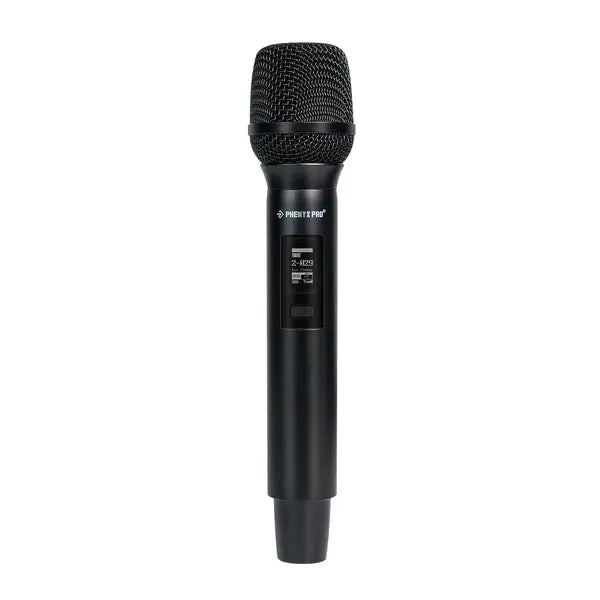

Dynamic Microphone Capsule with tuned EQ for rich, natural vocals.
-
True Diversity Circuitry – Monitors and selects the strongest signal to reduce dropouts.
-
Selectable Transmitter Power (5mW, 10mW, 30mW) – Adjust for range, battery efficiency, or interference control.
-
Adjustable Receiver Sensitivity (High, Mid, Low) – Fine-tune for different environments.
-
8+ hours battery life with AA alkaline batteries.
Technical Specifications
System:
-
Frequency Range: 512–562 MHz
-
Modulation Mode: FM
-
Bandwidth: 25 KHz per channel
-
Number of Frequencies: 2 × 1000 (0.025 MHz increments)
-
Frequency Stability: ±0.005%
-
Dynamic Range: >110 dB
-
Peak Deviation: ±45 KHz
-
Frequency Response: 60 Hz – 18 KHz (±3 dB)
-
S/N Ratio: >105 dB
-
THD: <0.5%

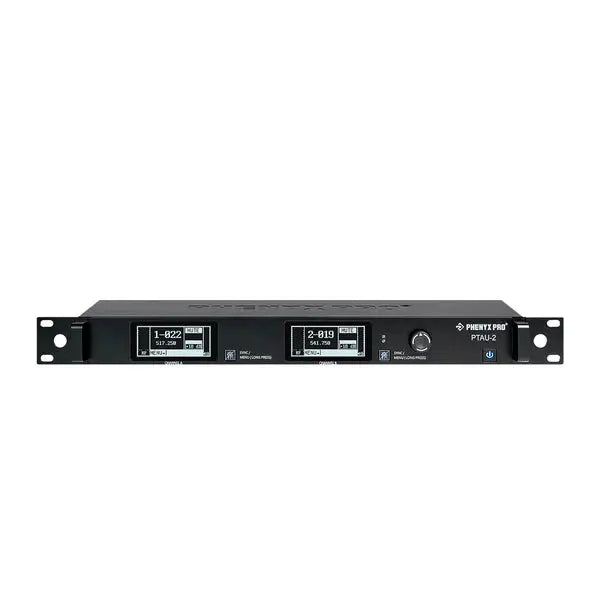

Receiver:
-
IF Frequency: 110 MHz (1st), 10.7 MHz (2nd)
-

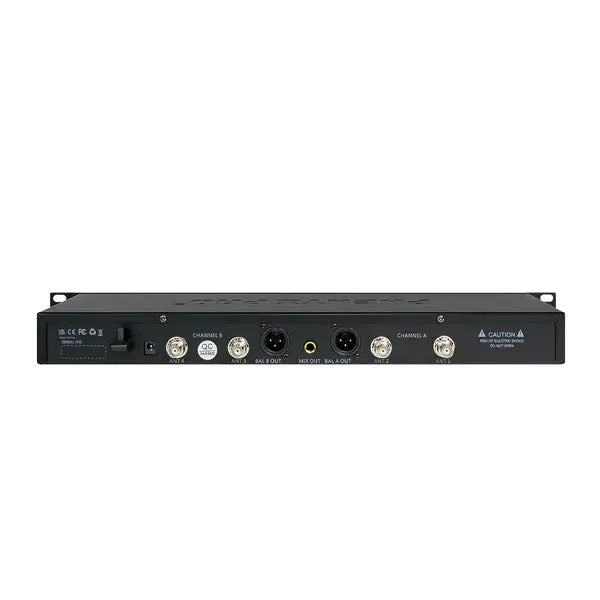

Antenna Connector: BNC
-
Sensitivity: 12 dBμV (80 dB S/N)
-
Quieting Sensitivity: -40 dB
-
Image Rejection: >80 dB
-
Output Level:
-
Power Requirement: DC 11–16 V (rated 12 V), <200 mA (single), <350 mA (dual)
Transmitter:
-
Output Power: 5–30mW (adjustable)
-
Current Consumption: <110 mA (HF), <80 mA (LF)
-
Battery Life: ≥8 hours (AA alkaline battery)
Frequency List:
Exceptional Sound Quality with True Diversity Technology
The Phenyx Pro PTAU-2 is designed to deliver exceptional sound quality, making it a top choice for live performances and recordings. With its advanced true diversity technology, this wireless microphone system minimizes the chances of interference, leading to clearer audio. Many users appreciate that it operates in a reliable UHF range, which provides a stable connection so they can focus on their performance without worrying about audio dropouts.
User-Friendly Dual-Channel Features
This system features dual-channel operation, allowing you to connect two microphones simultaneously, which is great for interviews or duets. Thanks to its easy-to-use interface, adjusting settings is straightforward, even for beginners. Users find that the LED display provides real-time feedback regarding battery life and signal strength, ensuring you are always aware of your audio environment.
Versatile Applications for Any Environment
Whether you're using the Phenyx Pro PTAU-2 for public speaking, karaoke, or recording, this system adapts to various environments seamlessly. Its lightweight build allows for easy transport, and it comes with a durable carrying case. Because it's versatile, users find it suitable for events ranging from small gatherings to large concerts, ensuring your voice is captured in the best quality possible.
Advanced True Diversity Technology
The Phenyx Pro PTAU-2 is a cutting-edge wireless microphone system that utilizes advanced true diversity technology. This means it operates with two receivers to minimize dropouts, providing a more reliable signal. Because of this feature, users can enjoy uninterrupted audio quality even in crowded or high-interference environments. The dual-channel function allows you to use two microphones simultaneously, making it ideal for interviews, presentations, or performances.
Flexible and User-Friendly Design
This wireless system is designed for ease of use, featuring user-friendly controls that any novice can grasp quickly. The setup process is straightforward; simply plug in the receivers and sync the microphones. Equipped with a lightweight design, the Phenyx Pro PTAU-2 is comfortable to hold, allowing for extended use without fatigue. This versatility makes it suitable for various applications, such as public speaking, live music performances, and recording sessions.
Exceptional Sound Quality
One of the standout features of the Phenyx Pro PTAU-2 is its exceptional sound quality. The system captures audio with high clarity and minimal distortion, ensuring your voice comes through loud and clear. Additionally, the system operates in a wide frequency range, allowing users to select optimal channels to avoid interference. Furthermore, the built-in rechargeable batteries offer extended usage time, so you can focus on delivering a great performance without worrying about changing batteries.
