One Monitor Station. Diversified Monitoring Experience.

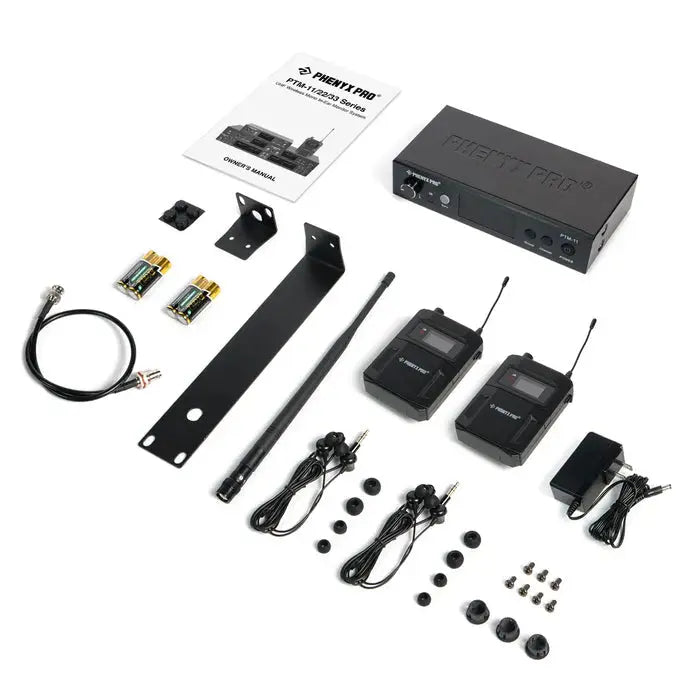

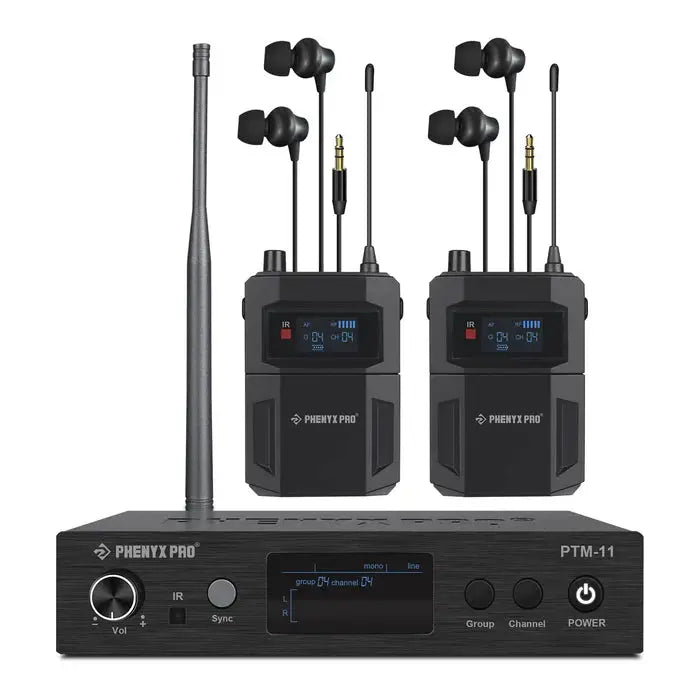

The Phenyx Pro PTM-11-2B UHF Mono Wireless In-Ear Monitor System solves the challenges of bulky floor monitors in live performances, letting you move freely on stage, engage with your audience, and share one basic monitor signal with your bandmates while customizing your own mix.
Designed with loop outputs, selectable UHF frequencies, and rugged bodypacks, this system provides a flexible, reliable, and affordable IEM solution for bands, performers, and studios. With crystal-clear mono audio and zero latency, you can focus entirely on your performance.
Key Features
-
Crystal-clear mono audio with zero latency for flawless live monitoring.
-
PAD button lowers input gain to prevent overload and distortion.
-
Loop Output design allows flexible routing and daisy-chain connections.
-
Customizable mixes – one transmitter station supports unlimited bodypack receivers.
-
Selectable UHF frequency design for interference-free operation.
-
Quick IR sync + one-touch frequency selection for fast setup.
-
Rugged construction for receivers and bodypacks with a sleek profile.
-
Rack-mountable design with brackets included.
-
Up to 164 ft (50m) operation range.
-
Frequency options:
Explore the Diversified Monitoring Series
The PTM-11/22/33 Wireless Mono In-Ear Monitor Series delivers high-fidelity sound, zero latency, and reliable wireless monitoring for all performance levels:
With selectable UHF frequencies, loop outputs, and daisy-chain flexibility, this series is ideal for bands, live shows, DJ sets, and studio monitoring.
Technical Specifications
System (Overall):
-
Frequency Range: 530–580 MHz / 902–928 MHz (depending on regulations)
-
Working Distance: 164 ft (50m)
-
Frequency Response: 50Hz–16kHz
-
Dynamic Range: >90dB

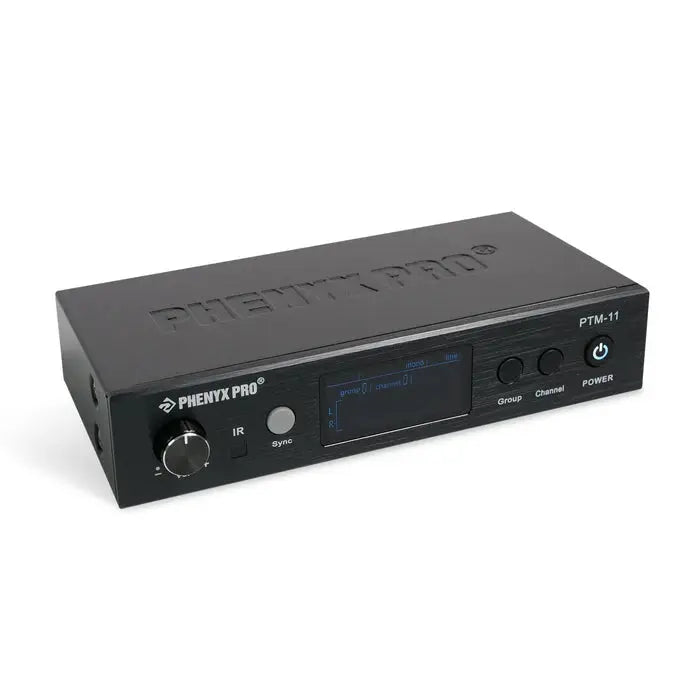

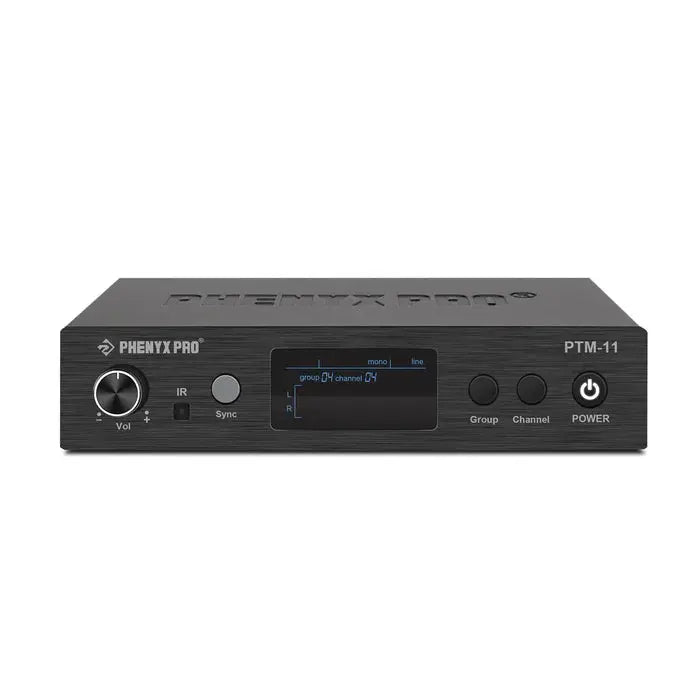

Transmitter:
-
Max Audio Input Level: +6dBV
-
Gain Adjustment Range: 40dB
-
Input Impedance: 6.8kΩ
-
Output Level: 10dBm
-
Power Requirement: AC 110V–240V, 50/60Hz | DC 13.5V, 500mA
Bodypack Receiver:
-
Sensitivity: -90dBm
-
Audio Input Level: 80mV
-
Battery Life: >6 hours
Outstanding Sound Quality
The Phenyx Pro PTM-11-2B provides exceptional audio clarity and fidelity. This UHF mono wireless in-ear monitor system ensures that performers receive clear sound without interference, making it ideal for live settings. Because of its advanced technology, users can enjoy a crisp and detailed audio experience, enhancing their performance and connection with the audience.

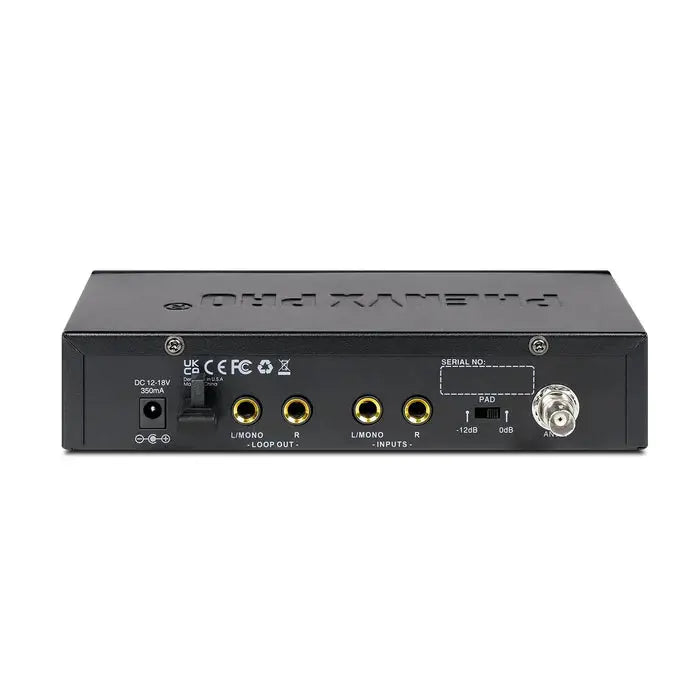

Flexible Loop Output Feature
One of the standout features of the PTM-11-2B is its loop output, which makes setup and integration into existing audio systems easy. This feature allows musicians to connect additional equipment without the need for complex configurations. So, whether you are in a rehearsal or live performance, this system offers the flexibility needed to meet various audio demands.
User-Friendly Design
The Phenyx Pro PTM-11-2B is designed with the user in mind. The device is lightweight and easy to use, making it accessible for musicians of all experience levels. Additionally, its intuitive controls and clear display allow for quick adjustments, which is crucial during live performances. Therefore, whether you are a seasoned professional or just starting, this system is built to empower your audio experience.
Superior Audio Quality for Performers
The Phenyx Pro PTM-11-2B stands out as a remarkable UHF mono wireless in-ear monitor system, providing crystal-clear audio fidelity that performers crave. Musicians can enjoy uninterrupted sound and clarity, ensuring they never miss a note during their performance. This system is designed to enhance both practice sessions and live gigs, so every performer can focus on delivering their best without worrying about sound quality.
Versatile Loop Output Feature
The loop output on the Phenyx Pro PTM-11-2B adds remarkable functionality to its design. With the ability to connect multiple systems, users can easily create a more extensive audio setup, making it perfect for larger venues or collaborations. This feature is essential for musicians who require flexibility in their setup because it allows seamless integration into any sound system.
User-Friendly Design and Setup
Not only does the Phenyx Pro PTM-11-2B prioritize audio quality, but it also excels in user-friendliness. Setting up this wireless in-ear monitor system is straightforward, even for those who may not be technically inclined. The intuitive controls and compact design make it accessible for all users, from amateur musicians to professional bands. Therefore, the Phenyx Pro PTM-11-2B is a delightful solution for anyone looking to improve their audio experience.
