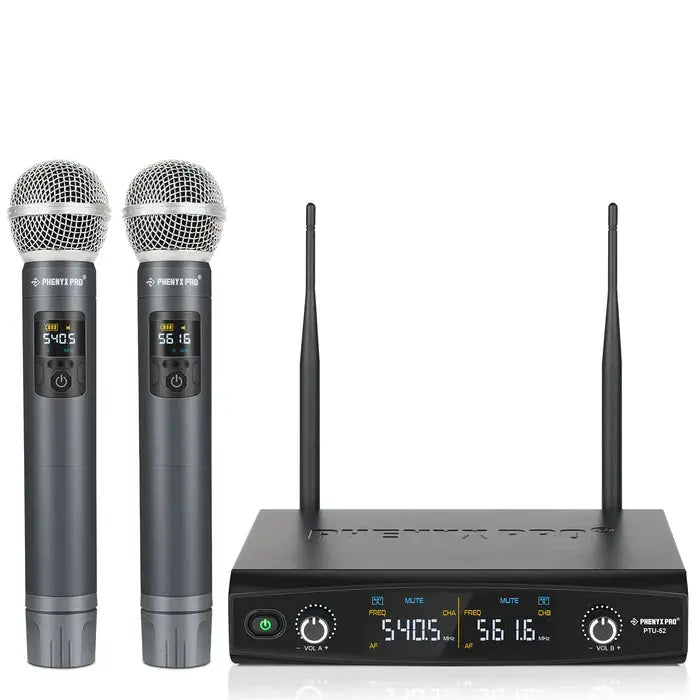

Phenyx Pro PTU-52-2H | Dual Wireless Microphone System w/ Frequency Hopping
Crystal-Clear Wireless Performance for Every Stage
With its clear and crisp audio, the Phenyx Pro PTU-52-2H is a flexible and versatile dual wireless microphone system—a must-have for outdoor events, karaoke nights, live performances, houses of worship, and more.
Equipped with 30 adjustable frequencies in the 500MHz–590MHz band, the PTU-52-2H allows multiple systems to operate simultaneously without interference. With its rugged construction and professional-grade performance, this system is built to last and help you deliver your best to any audience.
Key Features
-
Dual-channel design with selectable frequencies in the 500MHz–590MHz band.
-
Crystal-clear audio quality with cardioid pickup pattern to minimize background noise.
-
Durable construction for both receivers and transmitters.
-
Quick and easy frequency adjustment from transmitters.
-

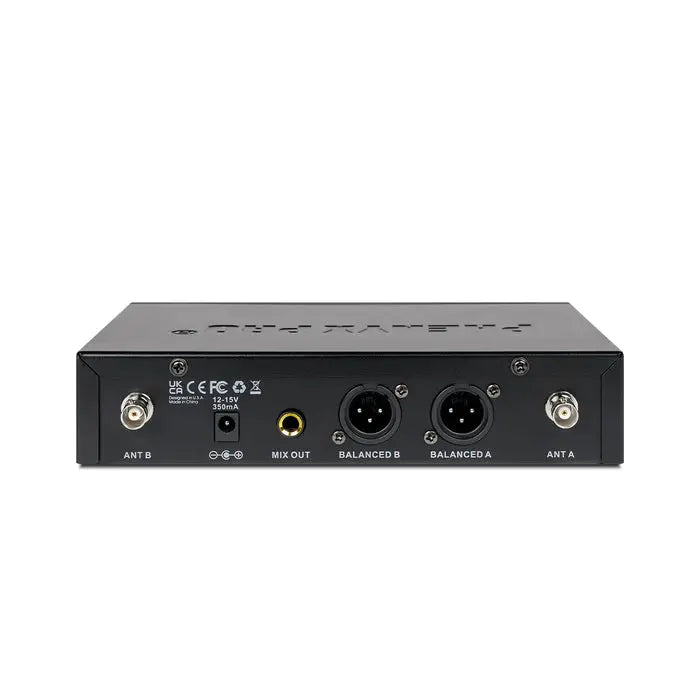

Two XLR outputs (one per channel) + one 1/4" TS unbalanced mixed output.
-
Up to 200 ft operation range for maximum flexibility.
-
8+ hours battery life per transmitter.
Explore the Frequency Hopping Series
The Frequency Hopping Series (PTU-52 / PTU-5200 / PTU-4200) takes wireless performance to the next level. Unlike fixed-frequency systems, this innovative line prevents disruptions and dropouts—giving performers seamless transmission, flexible frequency options, and remote accessibility.
Whether you’re commanding the stage solo or performing as part of a group, experience audio freedom and professional reliability with Phenyx Pro.
Technical Specifications

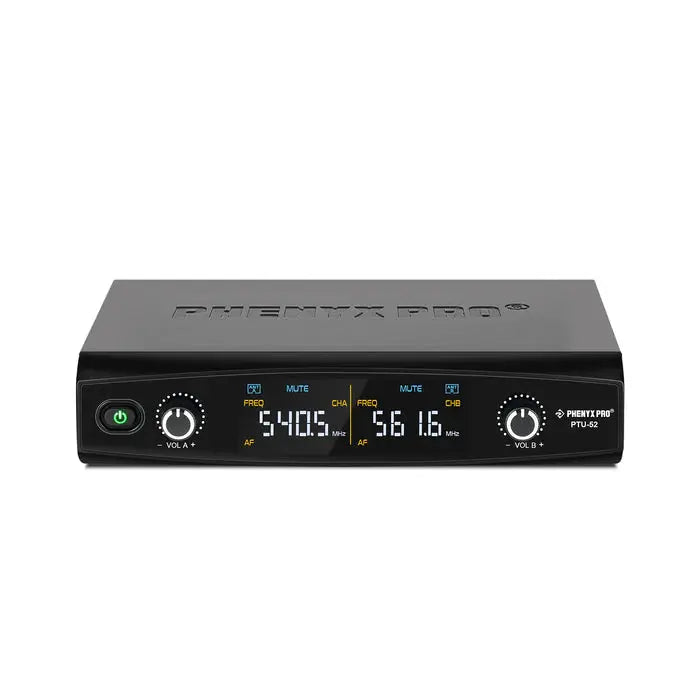

Receiver (PTU-52 / PTU-5200 / PTU-4200):
-
Frequency Range: 500MHz – 590MHz
-
Frequency Stability: < ±30 ppm
-
Audio Dynamic Range: > 90dB
-
T.H.D: < 0.5%
-
Frequency Response: 40Hz – 15KHz (±3dB)
-
Output: XLR balanced, 1/4" unbalanced
-
Output Voltage: 0–300mV (1/4")
-
Operating Temperature: -10℃ to +50℃
-
Antenna Jack: PTU-52 (TNC 50Ω) | PTU-5200 (BNC 50Ω)
-
Rated Power: 4W
-
Signal-to-Noise Ratio: PTU-52 > 98dB | PTU-5200 > 95dB
-
Mirror Frequency Rejection: > 80dB
-
Spurious Reduction: > 80dB
-
RF Sensitivity: PTU-52 > 5dBu | PTU-5200 > 7dBu
-
Power: DC 13.5V (power adapter included)

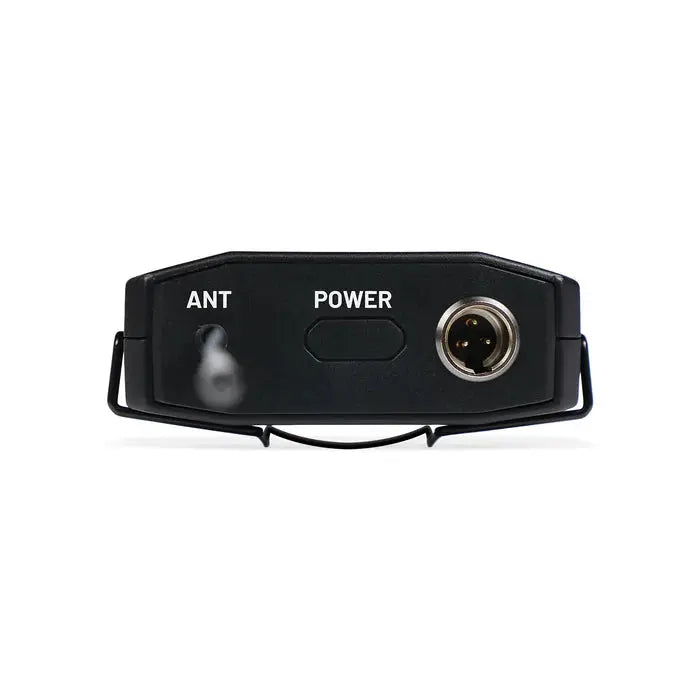

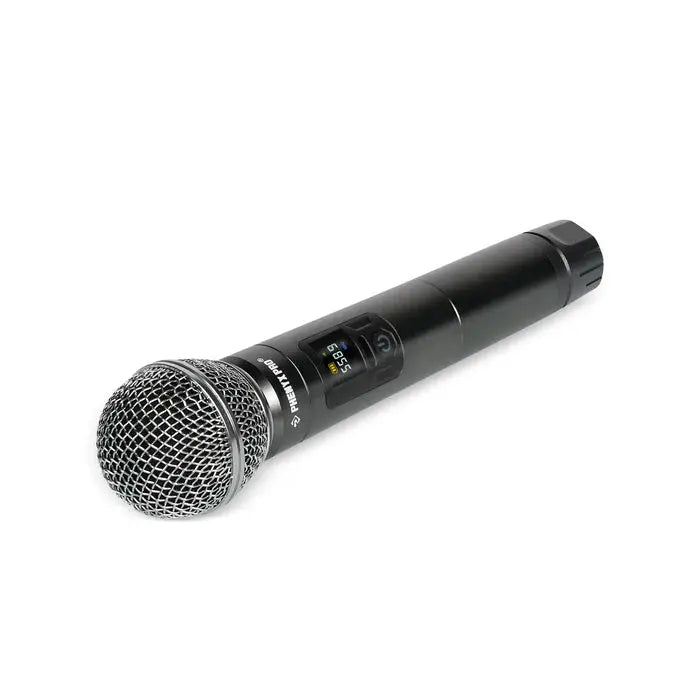

Transmitter (PTU-52 / PTU-5200 / PTU-4200):
Unmatched Sound Quality
The Phenyx Pro PTU-52-2H is designed to deliver exceptional audio clarity, making it perfect for professionals and enthusiasts alike. This wireless microphone system features advanced technology to ensure that your sound is crisp and clear, even in challenging environments. The frequency hopping technology allows the microphones to switch frequencies automatically, reducing the chances of interference during your live performances.
Ease of Use and Setup
With user-friendly controls and a straightforward setup process, the PTU-52-2H makes it simple for anyone to use, regardless of technical skills. Just connect the receiver, and you’re ready to go! This convenience allows you to focus on your performance instead of worrying about the complexity of audio equipment. Moreover, its robust design is built to withstand the rigors of regular use, ensuring reliability during events.
Versatile Applications
This dual wireless microphone system is incredibly versatile, suitable for a wide range of applications such as live performances, presentations, or even interviews. It provides two transmitters, so you can easily include a guest speaker without the hassle of additional cables. Because it offers the flexibility you need, the Phenyx Pro PTU-52-2H is ideal for schools, churches, and professional audio settings.
